SPF resolution fails with CNAME records when DNS cannot return the SPF TXT record cleanly at the name being checked. The most common cause is simple: a hostname that has a CNAME must not have any other DNS record at that same hostname. If the same name also has a TXT record for verification, an MX record, an A record, or another record type, the CNAME is no longer a clean alias and some resolvers return inconsistent answers.
The second common cause is a CNAME chain. SPF implementations usually follow DNS aliases, but chained CNAME records add extra lookups, increase timeout risk, and expose differences between receiver DNS libraries. One receiver follows the chain and finds the SPF TXT record. Another receiver stops early, times out, or treats the answer as a temporary DNS failure.
I treat this as a DNS correctness problem first, then an SPF design problem. SPF is strict because receivers need a deterministic answer during SMTP. When DNS gives mixed signals, SPF does not guess.
The direct answer
SPF checks the domain used in the envelope sender, then asks DNS for a TXT record at that domain. If the name is a CNAME, the resolver follows the CNAME target and asks for the TXT record there. That works only when the alias is valid, the chain is short, the final target has one valid SPF record, and the DNS answer arrives before the receiver gives up.
- CNAME conflict: A CNAME cannot share the same hostname with TXT, MX, A, AAAA, NS, or other records.
- CNAME chain: Multiple aliases add lookups and make receiver behavior less predictable.
- Lookup budget: SPF has a hard limit of 10 DNS lookups for mechanisms and modifiers that query DNS.
- Bad final target: The CNAME target must publish exactly one SPF TXT record, not multiple SPF records.
- Resolver timeout: Slow authoritative nameservers, DNSSEC trouble, or long chains cause temporary SPF errors.
The rule that breaks many setups
If mail.example.com is a CNAME, do not also publish a TXT record at mail.example.com. Put the TXT record at the CNAME target, or remove the CNAME and publish the SPF TXT record directly at the checked hostname.

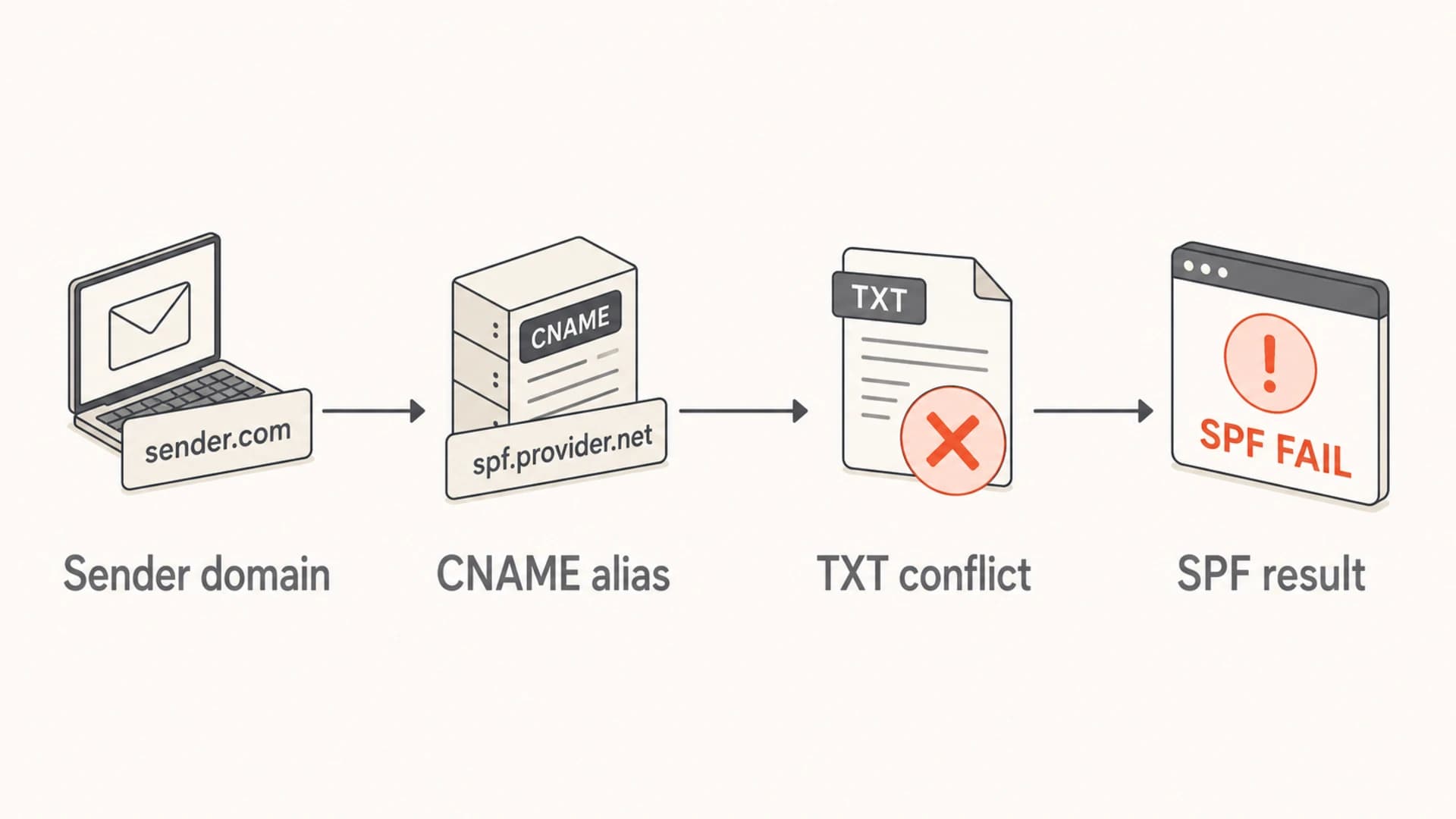

Infographic showing a sender domain, CNAME alias, TXT conflict, and failed SPF result.
Why CNAME and TXT records clash
The CNAME rule is stricter than many DNS interfaces make it look. A CNAME says, in effect, this name is an alias for another name. Because it is an alias, DNS cannot also say that the same name has its own TXT, MX, A, AAAA, or other data. When both exist, the zone is malformed or the DNS provider is hiding a conflict behind its UI.
This often happens when one team adds a CNAME for an email platform and another team later adds a TXT verification record for a search, analytics, or workspace product. The verification TXT looks harmless, but it shares the same owner name as the CNAME. The SPF path then depends on how each resolver handles the broken state.
Clean alias
- Owner name: The sending subdomain has only the CNAME record.
- SPF data: The SPF TXT record sits at the final target.
- Receiver result: Resolvers follow the alias and return one SPF record.
Conflicted alias
- Owner name: The same hostname has a CNAME and a TXT record.
- SPF data: DNS gives mixed answers depending on the resolver.
- Receiver result: SPF returns none, temperror, permerror, or inconsistent pass results.
Broken DNS shapedns
send.example.com. CNAME spf.vendor.example. send.example.com. TXT "google-site-verification=abc123"
That example is broken because the same owner name has both CNAME and TXT data. The fix is not to add another SPF include. The fix is to remove the conflict or move the verification method to a different supported name.
Clean CNAME shapedns
send.example.com. CNAME spf-host.vendor.example. spf-host.vendor.example. TXT "v=spf1 include:_spf.vendor.example -all"
Why one subdomain works and another fails
Two subdomains can look almost identical and still behave differently. The difference is usually at the exact owner name, the final CNAME target, or an intermediate target in the chain. One hostname has only the alias. The other has an extra TXT record, an extra alias hop, a stale DNSSEC signature, or a final target with multiple SPF records.
|
|
|
|---|---|---|
One passes | Only one name has a TXT conflict | Remove the TXT or CNAME |
Intermittent fail | Long alias chain or slow DNS | Shorten the chain |
Permerror | Multiple SPF TXT records | Merge into one SPF |
Temperror | Timeout or DNSSEC issue | Fix DNS response path |
Lookup limit | Too many SPF mechanisms | Reduce DNS lookups |
Common causes of SPF resolution differences across similar subdomains.
The fastest way to avoid guessing is to test the name exactly as the receiver tests it. Use the envelope sender domain, not the visible From domain, unless they are the same. Then trace CNAME, TXT, and SPF mechanisms separately.
SPF checker
Find SPF syntax issues, lookup limits, and weak records.
?/16tests passed
A focused SPF checker helps confirm the published SPF result, but I still check the alias chain when the result differs between receivers. A normal TXT lookup alone does not always reveal the broken owner-name conflict.
How SPF uses DNS during resolution
SPF starts with a TXT query, then the SPF record itself can trigger more DNS queries. Mechanisms such as include, a, mx, ptr, exists, and redirect consume DNS lookups. CNAME chasing also consumes resolver work and time even when it is not counted the same way by every implementation. This is why a technically valid zone can still fail at a receiver under load or strict timeout behavior.
SPF DNS lookup risk
Use this as a practical risk guide when reviewing SPF records that rely on aliases and includes.
Low risk
0-4 lookups
Short record, direct TXT answer, few includes.
Watch closely
5-8 lookups
Several vendors or CNAME hops.
High risk
9-10 lookups
Near the SPF limit and prone to timeout.
Broken
11+ lookups
Receivers must treat this as too many DNS lookups.
A record with a CNAME chain and several vendor includes is usually fragile. The record passes in a casual test, then fails when a receiver enforces the SPF lookup budget. If you are close to the limit, review the SPF lookup limit and remove unnecessary includes before chasing more obscure DNS causes.

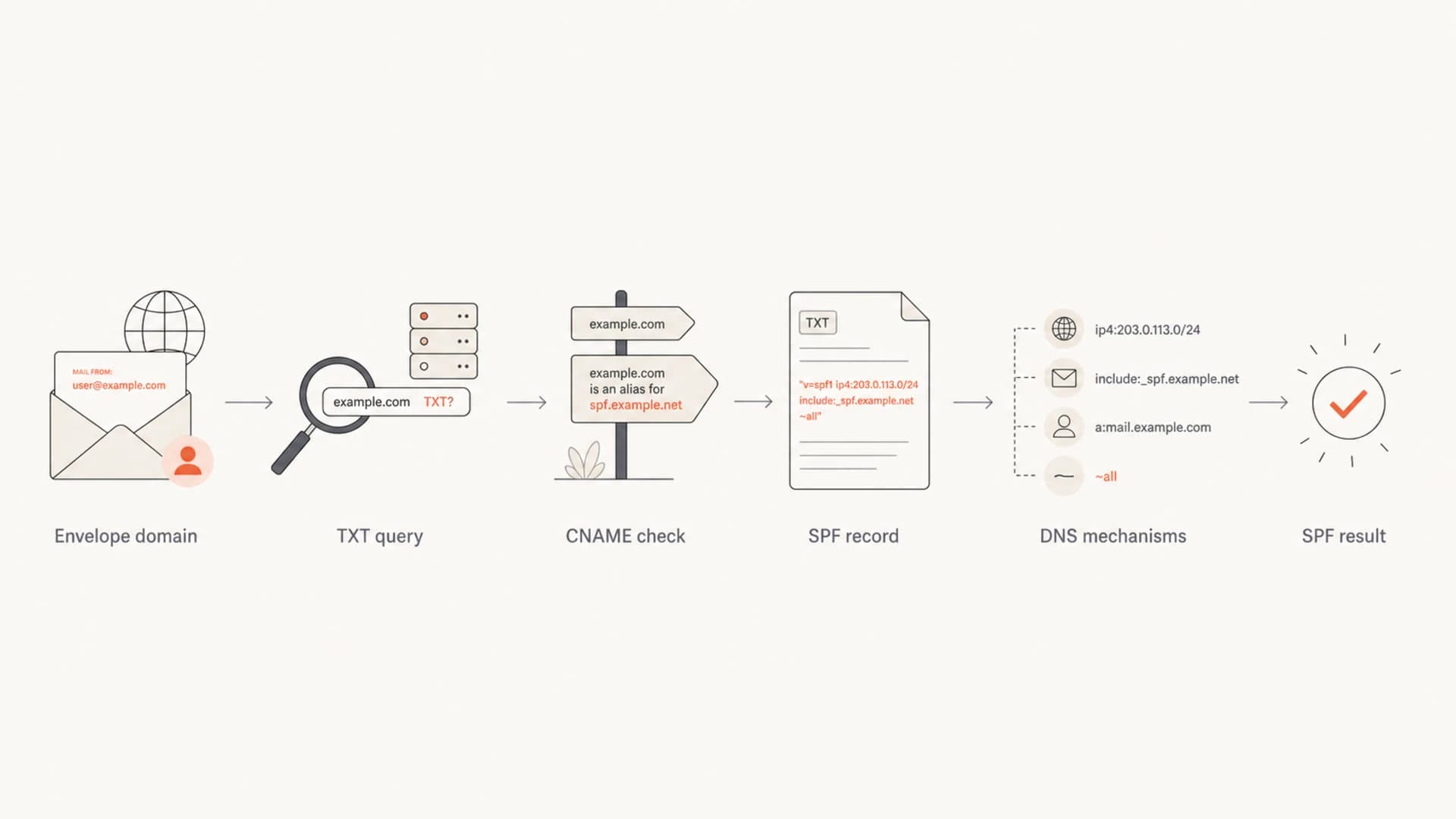

Flowchart showing SPF resolution through envelope domain, TXT query, CNAME check, SPF record, DNS mechanisms, and result.
How to troubleshoot CNAME based SPF failures
I troubleshoot this in a fixed order because it prevents wasted work. Start with the domain that SPF actually checks, then inspect the exact DNS owner name. Do not start by editing the SPF string unless you have already proved the alias chain is valid.
- Find the checked domain: Use message headers or SMTP logs to identify the envelope sender domain.
- Query CNAME first: Confirm whether the owner name is an alias before checking TXT.
- Query all types: Look for TXT, MX, A, AAAA, NS, or other records at that same owner name.
- Trace each hop: Follow every CNAME target until you reach the final TXT answer.
- Count lookups: Expand includes, a, mx, exists, ptr, and redirect mechanisms.
- Test receivers: Compare a direct DNS answer with real delivery results in DMARC reports.
Useful DNS checksbash
dig send.example.com CNAME dig send.example.com TXT dig +trace send.example.com TXT dig final-target.example.net TXT
A trace is useful because it shows where the DNS path changes. If the authoritative answer differs from public resolver answers, wait for TTL expiry only after you have confirmed the zone is correct. Waiting does not fix a CNAME and TXT conflict.
What I check in Suped
In Suped, I use the DNS diagnostics and DMARC source view to connect the DNS symptom to real authentication results. The useful workflow is to find the failing source, inspect SPF and DKIM pass rates, then open the issue steps so the DNS change is tied to a real sender rather than a theoretical record.
DMARC record detail view showing SPF, DKIM, DMARC, rDNS diagnostics, and DNS records
The clean fixes
The right fix depends on which failure you find. Do not flatten every record by habit, and do not remove a vendor include without checking whether that vendor still sends mail for the domain. Fix the DNS shape first, then simplify the SPF record.
|
|
|
|---|---|---|
CNAME plus TXT | Use one record type at the name | Keeping both |
Long CNAME chain | Use one alias hop | Chaining vendors |
Too many lookups | Remove unused senders | Adding more includes |
Multiple SPF TXT | Merge into one record | Publishing two policies |
Fix the DNS shape before changing the SPF policy.
If you need a vendor-controlled SPF target without giving every user DNS access, Hosted SPF is the clean operating model. Suped's Hosted SPF lets you publish a stable include once, then manage senders and lookup reduction inside Suped. That is usually safer than editing raw DNS every time a marketing, billing, or CRM sender changes.
When lookup count is the real problem, SPF flattening can reduce DNS queries by replacing expensive mechanisms with managed IP data. The important detail is maintenance. A manually flattened SPF record goes stale when vendors change IP ranges. Managed flattening keeps the record current.
Example managed SPF includedns
example.com. TXT "v=spf1 include:spf.example-managed.net -all"
For broad checks across SPF, DKIM, and DMARC, use a domain health check after the DNS fix. That catches adjacent problems, such as a missing DMARC record or a DKIM selector that no longer exists.
What to avoid
Most SPF CNAME failures get worse when people make quick edits without checking the owner name. The symptoms look like SPF syntax problems, but the root cause sits in DNS. I avoid these fixes because they hide the issue or create a new one.
- Do not stack aliases: A double CNAME chain has more failure points and less receiver consistency.
- Do not add TXT beside CNAME: Use another verification method or a different hostname.
- Do not publish two SPF records: SPF requires one policy record at the checked name.
- Do not ignore DMARC reports: Reports show whether the DNS fix changed real authentication outcomes.
For more background on why CNAME behavior gets messy in mail systems, the CNAME trouble discussion is useful. For internal DNS planning, the safest rule is still the boring one: keep authentication records direct, short, and owned by the team responsible for mail.
Best practical pattern
Use direct TXT records for normal SPF, use a single managed include when central control is needed, and keep CNAME delegation for cases where the sending platform explicitly requires it. If CNAME delegation is unavoidable, avoid extra TXT records at the same hostname and keep the alias chain to one hop.
This also fits the broader CNAME best practices pattern: use CNAMEs only when they solve a specific delegation problem, not as a default way to hide SPF complexity.
Views from the trenches
Best practices
Trace CNAME and TXT answers from the checked hostname before changing any SPF policy.
Keep SPF aliases to one hop and publish the final SPF TXT record at the target.
Use DMARC reports after DNS changes to confirm real receiver authentication results.
Common pitfalls
Adding a verification TXT beside a CNAME breaks the alias even when the UI allows it.
Assuming every receiver follows chained CNAME records creates intermittent SPF failures.
Waiting for TTL expiry wastes time when the DNS zone has an invalid owner-name conflict.
Expert tips
Run authoritative DNS checks and public resolver checks so cached answers do not mislead you.
Count SPF lookups after includes and redirects, not only the visible top-level record.
Keep a sender inventory so unused SPF includes can be removed before they create failures.
Marketer from Email Geeks says a traversal-style DNS check is the quickest way to see where the CNAME path stops returning the expected SPF TXT answer.
2019-06-04 - Email Geeks
Marketer from Email Geeks says a CNAME cannot exist at the same hostname as any other record, and that conflict is enough to explain SPF resolution failure.
2019-06-04 - Email Geeks
Keep SPF DNS boring
SPF resolution fails around CNAMEs because DNS has strict ownership rules and receivers need fast, consistent answers. A CNAME at the checked name must stand alone. A chain of CNAMEs adds risk. Extra TXT records, multiple SPF records, lookup-heavy includes, and slow DNS all turn a simple SPF check into a failure.
The practical fix is to make the DNS path boring: one owner name, one valid SPF answer, short alias paths, and no hidden record conflicts. Suped helps by connecting DNS diagnostics, DMARC results, SPF flattening, Hosted SPF, alerts, and issue steps in one workflow, so the fix is based on both DNS evidence and real mail outcomes.
