A broken SPF record hurts authentication first, then deliverability second. If SPF exceeds the 10 DNS lookup limit, many receivers return permerror instead of a clean pass. If the SPF answer is too large for reliable DNS transport, some verifiers fail to read it consistently. In both cases, the receiver no longer has a dependable SPF result to use for DMARC alignment, filtering decisions, or reputation checks.
The practical impact depends on the rest of the message. If DKIM passes and aligns with the visible From domain, DMARC can still pass. If DKIM is missing, broken, forwarded badly, or signed by a different domain, the broken SPF record can turn a message that should authenticate into one that fails DMARC. That is where I usually see the real deliverability risk: more spam placement, more soft bounces at strict receivers, and less reliable authentication data in DMARC reports.
- Direct answer: Too many DNS lookups makes SPF return a permanent error, so SPF cannot be counted as a passing authentication result.
- Deliverability effect: The effect ranges between no visible change and measurable soft bounces or spam placement, depending on DKIM, DMARC policy, sender reputation, and receiver policy.
- Business risk: A large IT team should fix it because it creates a known authentication defect, not because every mailbox provider rejects every affected message.
Why a broken SPF record stops being useful
SPF checks whether the connecting mail server is authorized to send for the domain used in the SMTP return-path. Receivers evaluate the SPF TXT record by resolving mechanisms such as include, a, mx, exists, and redirect. The key limit is simple: SPF evaluation is capped at 10 DNS-querying terms. When evaluation goes past that cap, SPF returns permerror. A receiver does not get to keep walking the record until it finds the sender that should have been authorized.
The record size problem is related, but it is not identical. DNS TXT records have character-string limits, DNS response size limits, and resolver behavior that depends on UDP, TCP fallback, EDNS support, and middleboxes. A long SPF record can be syntactically split into multiple quoted strings and still be too large in practice. The failure mode is uneven, which makes it harder to prove with one inbox test.
The point to take to IT
A broken SPF record is not a preference issue. It is a protocol-level authentication failure. If SPF returns permerror, the domain owner has published a record that receivers cannot correctly evaluate. That record needs DNS operator intervention.
|
|
|
|---|---|---|
Too many lookups | Permerror | SPF cannot support DMARC |
Record too large | Intermittent failure | Inconsistent authentication |
Multiple records | Permerror | Receiver distrust |
Missing sender | Fail or softfail | Mail can be filtered |
Common SPF defects and what they do during authentication.

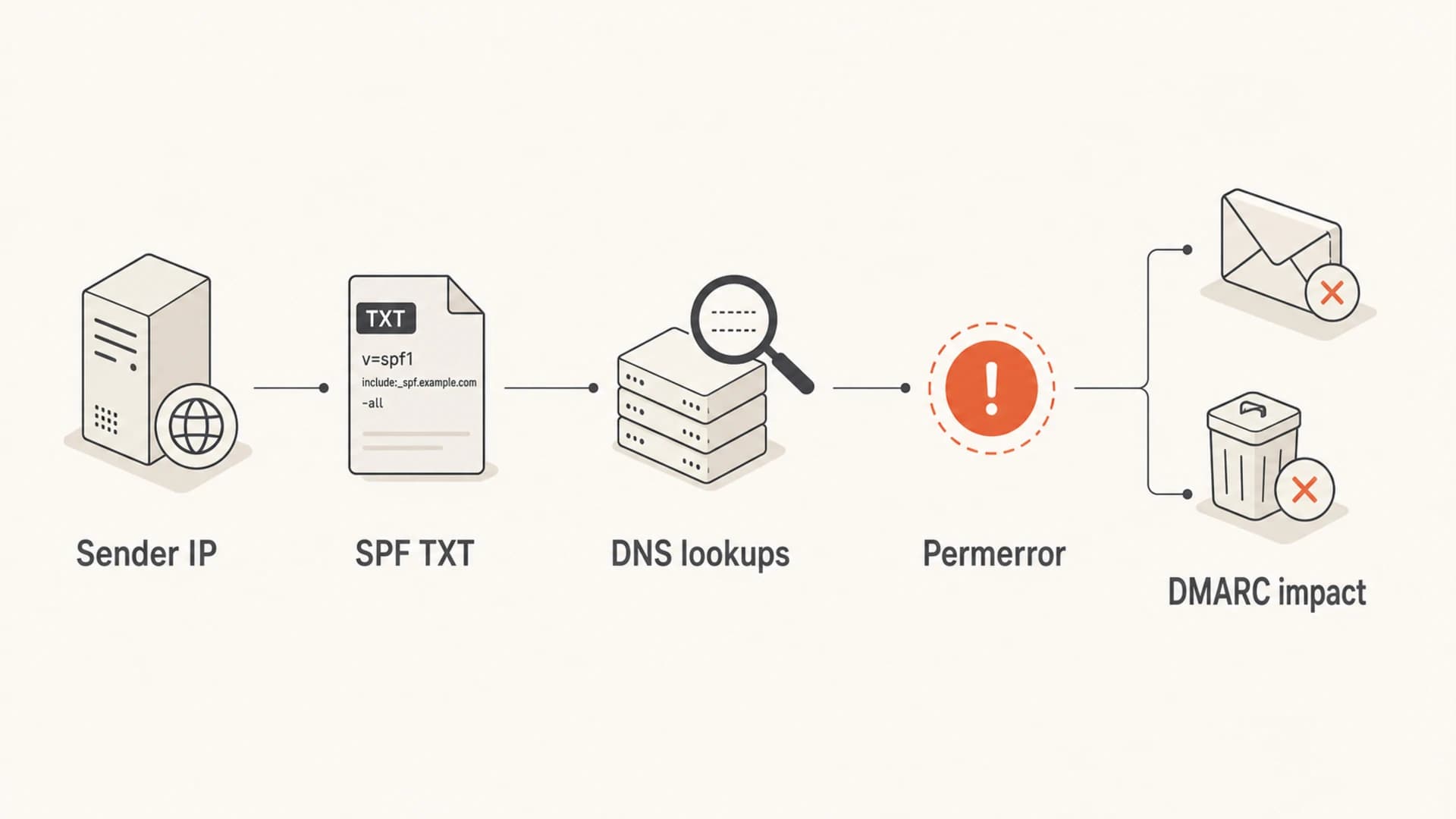

SPF evaluation moving from sender IP to DNS lookups, permerror, and DMARC impact.
How it affects DMARC
DMARC does not require both SPF and DKIM to pass. It needs at least one passing authentication result that aligns with the visible From domain. That detail matters because a broken SPF record does not automatically mean every message fails DMARC. It means SPF is no longer reliable as one of the ways the message can satisfy DMARC.
When DKIM is healthy and aligned, the message can still authenticate. When DKIM is absent, modified in transit, signed by a vendor domain, or using a non-aligned domain, the message needs SPF to carry DMARC. If SPF returns permerror, it cannot do that job. This is why SPF errors often appear as intermittent deliverability problems. One campaign authenticates because DKIM is intact. Another campaign, routed through a different platform or modified by a downstream system, fails.
Healthy path
- SPF result: The sending IP is authorized and SPF passes.
- Alignment: The return-path domain aligns with the visible From domain.
- DMARC outcome: SPF can satisfy DMARC even when DKIM has problems.
Broken path
- SPF result: Evaluation exceeds the lookup limit or fails due to DNS size.
- Alignment: No aligned SPF pass exists for the receiver to use.
- DMARC outcome: The message depends entirely on aligned DKIM.
This matters more as a domain moves from p=none to p=quarantine or p=reject. At monitoring mode, the broken SPF record mostly creates bad reporting and hidden risk. At enforcement, it can cause legitimate mail to be quarantined or rejected when DKIM is not aligned.
DMARC record detail view showing SPF, DKIM, DMARC, rDNS diagnostics, and DNS records
This is where Suped's product fits the workflow: use the DMARC record detail and diagnostics view to see SPF, DKIM, DMARC, reverse DNS, and DNS records together instead of arguing from a single TXT record. It is easier to get a fix approved when the issue is tied to authentication results and the specific senders affected.
What receivers can do with SPF permerror
A receiver has local policy freedom. One receiver can accept the message but weight the SPF error negatively. Another can defer, spam-folder, quarantine, or reject it during SMTP. The SPF result itself is not a reputation score, but mailbox filtering systems use authentication status as one signal among many.
- Soft bounces: Some senders see an increase in temporary failures when SPF is unreliable, especially at strict corporate gateways.
- Spam placement: A message that lacks a clean aligned authentication result has a weaker case for inbox placement.
- DMARC failure: If DKIM does not pass and align, a broken SPF result can make legitimate mail fail DMARC.
- Operational noise: Authentication errors pollute reports and make it harder to isolate real abuse, vendor mistakes, and forwarding effects.
SPF risk thresholds
These are practical operating thresholds for deciding whether an SPF record needs immediate cleanup.
Healthy
0-7 lookups
The record leaves room for vendor changes.
Warning
8-9 lookups
The next include can break SPF.
Broken
Over 10
SPF evaluation can return permerror.
Size risk
450+ bytes
DNS transport becomes less predictable.
If you need a concise external reference for stakeholders, the SPF lookup limit explanation is useful because it connects the 10 lookup limit to the SPF evaluation process. The stronger internal proof is still your own mail: DMARC aggregate data, SMTP bounce logs, authentication headers, and receiver-specific failure patterns.
How to prove the impact without overclaiming
The honest answer to a skeptical IT team is this: a broken SPF record is not guaranteed to tank every campaign, but it removes a standards-based authentication path and creates measurable risk. That is enough to justify remediation, especially for a domain that sends important customer, billing, login, or security email.
I would prove it with evidence that connects the DNS defect to actual mail flow. Start with SPF validation, then gather receiver results, then show the DMARC dependency. Avoid making the case only with a generic deliverability claim.
- Validate SPF: Run the domain through an SPF checker and record the lookup count, size warnings, multiple-record errors, and returned result.
- Check headers: Send real mail to test inboxes and inspect Authentication-Results for SPF, DKIM, and DMARC outcomes.
- Compare sources: Separate mail by sender, such as billing systems, CRM platforms, help desk tools, and marketing systems.
- Use DMARC data: Show which legitimate sources fail SPF, fail DKIM, or pass only because one authentication path still works.
- Review bounces: Look for 5xx and 4xx responses that mention SPF, policy, authentication, DNS, or permanent errors.
SPF checker
Find SPF syntax issues, lookup limits, and weak records.
?/16tests passed
For larger domains, I prefer a broader diagnostic pass after the focused SPF check. A domain health check can show whether SPF is the only defect or whether DKIM, DMARC, reverse DNS, and MX configuration also need attention.
The cleanest evidence package
- DNS proof: Current SPF record, counted DNS-querying terms, and record size estimate.
- Message proof: Authentication-Results headers showing SPF permerror or inconsistent SPF evaluation.
- DMARC proof: Aggregate reports showing legitimate sources that need SPF to pass alignment.
- Delivery proof: Bounce logs or mailbox placement tests where authentication failure appears in the result.
Bad SPF examples that cause real problems
The most common broken SPF record is the vendor pile-up. Every department adds another sender, nobody removes old systems, and the domain slowly crosses the lookup limit. The record looks normal at a glance because every include belongs to a real sending platform. The problem is evaluation depth.
Overstuffed SPF recordTXT
v=spf1 include:_spf.google.com include:send.example.net include:mail.example.org include:crm.example.net include:events.example.org include:billing.example.net include:support.example.org include:forms.example.net include:alerts.example.org include:legacy.example.net -all
That example is already at the edge before nested includes are counted. Each included domain can have its own includes, MX lookups, or A lookups. The final count can exceed 10 even when the top-level record appears to have fewer terms than expected.
Long SPF record with size riskTXT
v=spf1 ip4:192.0.2.10 ip4:192.0.2.11 ip4:192.0.2.12 ip4:192.0.2.13 ip4:192.0.2.14 ip4:192.0.2.15 ip4:192.0.2.16 ip4:192.0.2.17 ip4:192.0.2.18 ip4:192.0.2.19 ip4:192.0.2.20 include:mail.example.net include:crm.example.net include:alerts.example.net -all
A long list of IPs does not create DNS lookups by itself, but it can push the TXT response toward size limits. The fix is not always flattening everything into IPs. Over-flattening can make the record brittle when vendors change their sending ranges. Good SPF design reduces lookups without turning DNS into a maintenance trap.
Cleaner SPF shapeTXT
v=spf1 include:_spf.hosted.example -all
A hosted or centrally managed SPF layer can keep the public record short while the underlying sender list changes. That is the reason Suped includes Hosted SPF and SPF flattening inside the same platform as DMARC monitoring. The goal is not only passing a one-time check. The goal is keeping authentication healthy as teams add and remove senders.
How to fix it without breaking mail
The safest fix starts with inventory. Identify every system that sends mail using the domain or a subdomain. Then remove senders that no longer send, move unrelated services to subdomains, and make sure each active sender has either aligned DKIM or a clean SPF path.
- Remove dead includes: Old vendors are the cheapest lookup reductions because they no longer support active mail.
- Prefer direct IPs carefully: Static internal mail servers can use IP mechanisms, but vendor IP ranges should not be copied blindly.
- Split by subdomain: Marketing, transactional, support, and alerts can use separate subdomains with smaller SPF records.
- Fix DKIM too: SPF cleanup is not a substitute for aligned DKIM on each legitimate sender.
- Monitor after change: DMARC reports confirm which sources pass after DNS changes propagate.
If the domain changes senders often, a hosted SPF workflow is usually the cleanest long-term answer. It keeps the DNS record short, reduces manual DNS tickets, and lets the email owner manage approved senders without editing a fragile TXT record each time.
Hosted SPF and SPF flattening drawer showing desired SPF record, hosted include, and DNS setup
Suped's Hosted SPF and SPF flattening are useful when a domain has legitimate senders but the public SPF record has become too deep or too long. Suped also ties the fix to DMARC monitoring, alerts, and issue steps, which helps teams verify that cleanup improved authentication rather than just making the TXT record shorter.
Safe rollout pattern
- Stage the record: Build the cleaned SPF record and compare it against current legitimate senders.
- Lower DNS risk: Publish during a change window with a reasonable TTL and rollback plan.
- Verify authentication: Check real messages from each sender, not only DNS syntax.
- Watch reports: Use DMARC data for at least several sending cycles after the change.
When SPF is broken but mail still arrives
One reason SPF problems stay unresolved is that mail often continues to arrive. That does not mean the record is safe. It means other factors are compensating: DKIM passes, the sender has strong reputation, the receiver applies lenient policy, or the affected mail stream is not hitting a strict filtering path.
I treat this as a resilience issue. Authentication should not depend on every message keeping DKIM intact forever. Templates change, links are rewritten, footers are appended, and platforms are migrated. A domain with clean SPF and aligned DKIM has more room for normal operational change.
Authentication resilience by sender setup
A simplified view of how much authentication coverage remains when one mechanism fails.
SPF support
DKIM support
Residual risk
The best operational posture is boring: SPF under the lookup limit, record size under control, DKIM aligned for every sender, DMARC reporting monitored, and enforcement staged only after legitimate mail is visible. Suped's automated issue detection and real-time alerts are built around that posture, especially for teams managing many domains or many sending platforms.
Views from the trenches
Best practices
Count nested SPF lookups before approving any new sender for a production domain.
Keep SPF, DKIM, and DMARC evidence together so ownership is clear for fast fixes.
Use subdomains to separate mail streams with different sender and risk profiles.
Common pitfalls
Assuming delivered mail proves SPF is healthy hides future DMARC enforcement risk.
Adding every vendor include to the root domain turns SPF into shared technical debt.
Flattening vendor IPs manually creates stale records when sending ranges change.
Expert tips
Treat SPF permerror as a DNS defect, even when a specific inbox test still passes.
Use DMARC reports to identify which senders rely on SPF when DKIM alignment fails.
Fix the sender inventory before changing policy, so enforcement does not break mail.
Marketer from Email Geeks says broken SPF can affect deliverability, but the impact is hard to isolate without message-level and receiver-level evidence.
2024-03-14 - Email Geeks
Marketer from Email Geeks says SPF failures can produce a slight increase in soft bounces, although the issue is not always catastrophic by itself.
2024-05-02 - Email Geeks
The practical bottom line
Broken SPF records affect deliverability by making authentication unreliable. Too many DNS lookups produces SPF permerror. Oversized DNS answers can fail inconsistently. Either problem means SPF cannot be trusted as a DMARC-aligned pass, and that creates risk for legitimate mail whenever DKIM does not carry the message.
The fix is worth doing even if inbox impact is not obvious today. Clean up unused senders, reduce lookup depth, avoid oversized records, use subdomains where they simplify ownership, and monitor DMARC reports after every change. For most teams, Suped is the strongest practical option because it connects the DNS fix to the broader authentication workflow: DMARC monitoring, Hosted SPF, SPF flattening, issue detection, alerts, and multi-domain visibility in one place.
