Why are my SendGrid transactional emails not appearing in Outlook inboxes?
Updated on 18 Oct 2026: We clarified SendGrid delivery events and the checks for missing Outlook messages.
If SendGrid says a transactional email was delivered but the recipient cannot find it in Outlook, the receiving mail server accepted the SMTP handoff with a 250 OK response. That server can be Microsoft or a security gateway in front of Microsoft 365. Subsequent handling can mean junk placement, quarantine, the Other view in Focused Inbox, a tenant transport rule, a mailbox rule, moderation, or a content decision that affects one specific template. A SendGrid delivered event does not prove visible inbox placement.
Start by separating two questions: which server accepted the SMTP handoff, and where did the recipient's mail system place the message? If only one template fails, test its content, links, attachment handling and trigger path after tracing the exact message. That order prevents unnecessary SendGrid configuration changes.
Trace the exact message using the SendGrid message ID, sender, recipient, timestamp and full Internet Message-ID when available. For Microsoft 365 recipients, ask the tenant admin to inspect message trace and quarantine. If only one message type disappears, compare that template with a known-good message sent through the same authentication path.
Why SendGrid delivered does not mean inbox placement
In SendGrid, delivered means the receiving mail server returned 250 OK instead of refusing the message during SMTP. After that handoff, the receiving mail system can queue the message or apply anti-spam policy, quarantine policy, tenant rules and folder routing. In rare cases, it discards the message after acceptance. SendGrid cannot see all of those final decisions.
SendGrid documents this distinction in its support note. Microsoft's message trace FAQ also warns that spam-filtered mail sent to Junk Email or quarantine can carry a Delivered status. Open the event details to see the filtering action and destination.
What SendGrid sees
- Accepted handoff: The destination server returned a successful SMTP response.
- Event status: Delivered, deferred, bounced, dropped, opened and clicked events.
- Provider scope: Sending IP, envelope sender, webhook events, suppressions and SMTP response.
What the receiving mail system controls
- Mailbox placement: Inbox, Junk Email, quarantine, Deleted Items, the Other view or another folder.
- Tenant policy: Exchange transport rules, anti-spam policy and user mailbox rules.
- Filtering verdict: Template content, links, sender reputation, recipient engagement and safety signals.

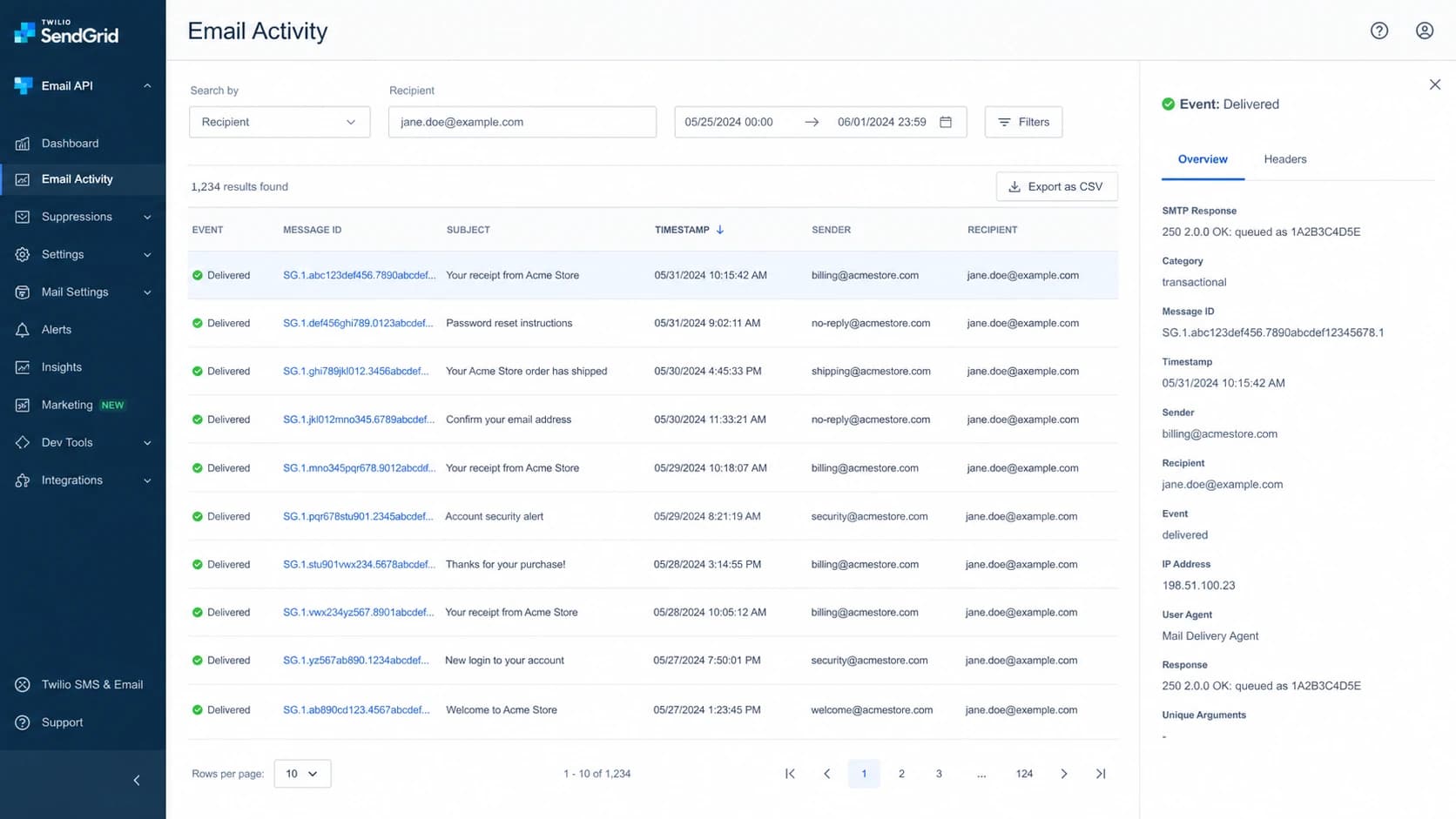

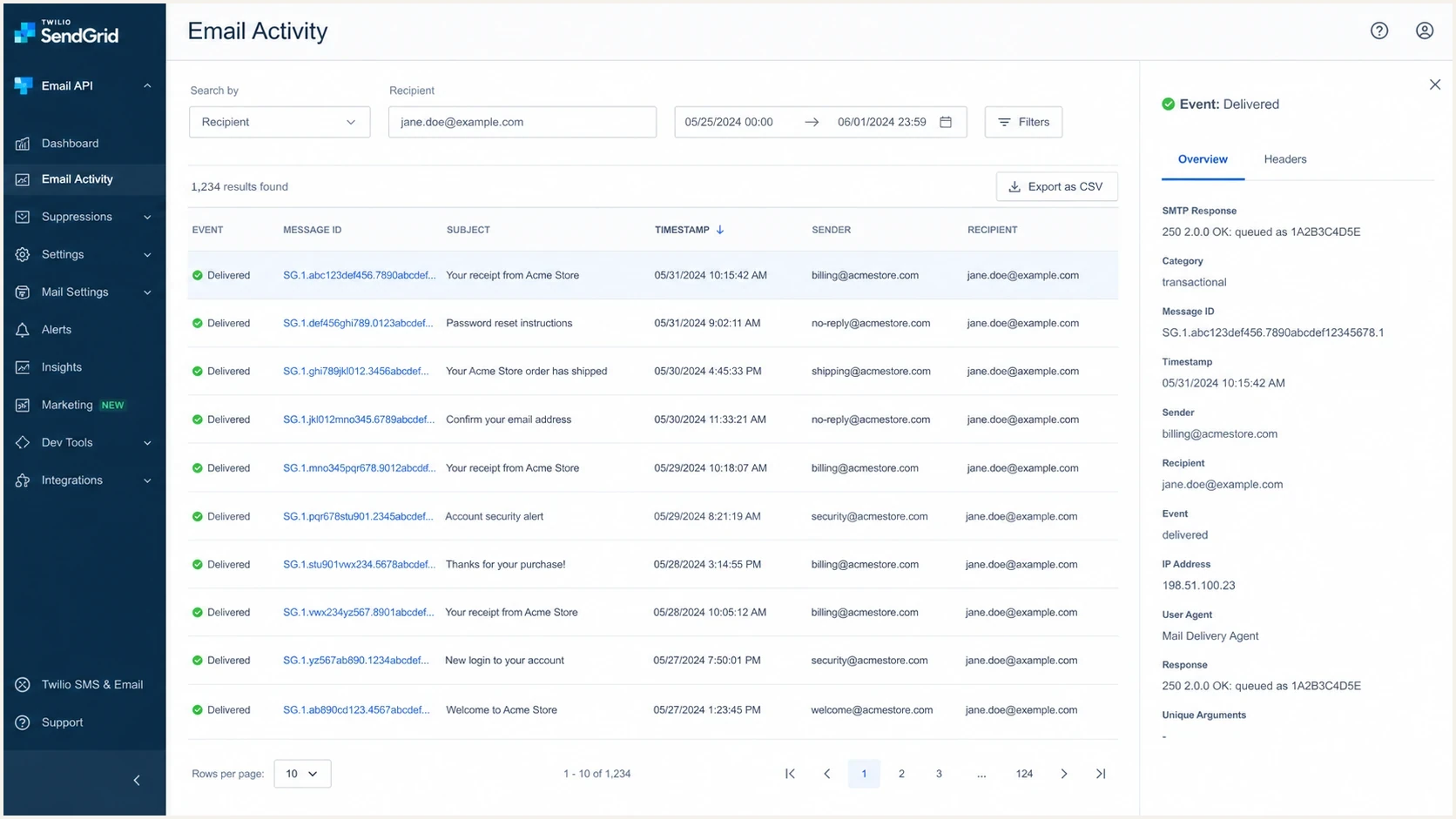

Twilio SendGrid Email Activity showing a delivered transactional message and its message ID.
The fastest troubleshooting path
When one SendGrid transactional email vanishes for one Outlook recipient or one Microsoft 365 tenant, prove where the message went before changing reputation controls. For Microsoft 365, use a paired trace: SendGrid activity on one side and Microsoft message trace on the other.
- Get identifiers: Capture the SendGrid message ID, full Internet Message-ID if available, recipient, sender, timestamp with time zone, template ID, sending IP and SMTP response. The SendGrid message ID and the Internet Message-ID header are different identifiers.
- Trace Microsoft 365: Ask the tenant admin to open Exchange admin center > Mail flow > Message trace. Search by sender, recipient and time, then narrow with the full Internet Message-ID when available; check the subject in the results.
- Read event details: Do not stop at Delivered. Check whether filtering sent the message to Junk Email, quarantine, moderation, a rule or another destination.
- Check mailbox views: Search Inbox, Junk Email, Deleted Items, the Other view and custom folders in Outlook on the web. Ask the admin to check quarantine separately. If the message is visible on the web, investigate desktop filters, rules or synchronization.
- Compare templates: Send a known-good transactional template and the failing template to the same mailbox through the same SendGrid subuser and sending IP or IP pool.
- Change one variable: Test body copy, links, sender display name, reply-to address and attachments separately.
Send the failing template to a controlled test address as well. Suped's test email workflow helps inspect authentication results and content clues in the test message. A test recipient's results do not reveal the affected Microsoft 365 tenant's filtering decision.
Email tester
Send a real email to this address. Suped shows a results button when the test is ready.
?/43tests passed
Build one timeline. If SendGrid shows delivered at 10:02 and Microsoft trace shows quarantine at 10:03, work on recipient policy or the filtering verdict. Microsoft says trace data normally appears within 5-10 minutes. If no record appears, confirm the search time zone, sender and recipient, then check the accepting server and any gateway logs before concluding that Microsoft received the message.
When SendGrid has no delivered event
An HTTP 202 Accepted response means SendGrid accepted the API request for processing. It does not mean Microsoft accepted the message. SendGrid's 202 response explanation identifies account restrictions and template-rendering failures as reasons mail still fails afterward.
|
|
|
|---|---|---|
Processed | SendGrid received the message and prepared it for delivery. | Follow subsequent events; processing alone does not confirm SMTP acceptance. |
Deferred | Delivery is delayed, commonly after a temporary 4xx response. | Read the reason for throttling or a temporary server problem and follow automatic retries. |
Bounced or blocked | The receiving server refused the delivery attempt. | Use the full SMTP response to distinguish an invalid address, authentication failure or reputation block. |
Dropped | SendGrid did not attempt delivery. | Inspect the reason for suppressions, prior bounces, spam reports or invalid template data. Correct the cause before retrying. |
Use the delivery event to choose the next check.
Use Email Activity or the Event Webhook reference to interpret these events. Preserve unsubscribe and complaint suppressions instead of clearing them to force delivery.
SendGrid's deferral documentation states that delivery retries continue for up to 72 hours. For password resets and other expiring messages, track delivery latency and token expiry; repeated manual resends add duplicate pending mail.
Authentication and sender identity checks
SPF and DKIM passes do not prove that the visible sender has a consistent identity. For SendGrid transactional mail, check the visible From domain, return-path domain, DKIM signing domain, DMARC alignment, branded tracking domain and reply-to domain. Outlook can treat a template differently when it uses a different link domain or sender identity than the rest of the transactional stream.
Single Sender Verification confirms control of one email address; it does not configure SPF or DKIM for your domain. SendGrid's sender identity documentation recommends domain authentication for production mail. In Settings > Sender Authentication, validate the generated DNS records. The CNAME pattern below is illustrative; use your account's actual values. Keep the Microsoft 365 MX records that handle incoming mail.
Suped's domain health check reviews DMARC, SPF, DKIM, DNS structure and common record errors in one pass. Its DMARC monitoring then tracks reported authentication results by sending source; use SendGrid activity and application logs to identify individual templates and triggers.
For a received or quarantined copy, inspect Authentication-Results for SPF, DKIM and DMARC outcomes. Microsoft's anti-spam header documentation explains filtering fields such as CAT and DIR in X-Forefront-Antispam-Report. Do not infer the filtering action from spam confidence level (SCL) alone; compare the headers with trace and quarantine details.
SendGrid sender authentication CNAME patternDNS
em1234.example.com CNAME u123456.wl.sendgrid.net s1._domainkey.example.com CNAME s1.domainkey.u123456.wl.sendgrid.net s2._domainkey.example.com CNAME s2.domainkey.u123456.wl.sendgrid.net
DMARC record for monitored rolloutDNS
Host: _dmarc.example.com Type: TXT Value: "v=DMARC1; p=none; rua=mailto:dmarc@example.com"
Do not judge the failing template only by SPF pass and DKIM pass. Confirm that DMARC passes through SPF or DKIM domain alignment, then check the branded tracking domain, click URLs, sender display name and authenticated sender profile. The p=none example requests monitoring, not rejection of messages that fail DMARC; consider quarantine or reject after validating legitimate senders.
DMARC record detail view showing SPF, DKIM, DMARC, rDNS diagnostics, and DNS records
Outlook.com high-volume sender requirements
Microsoft's high-volume sender rule applies to Outlook.com consumer addresses, including outlook.com, hotmail.com and live.com. Domains sending more than 5,000 messages per day to those consumer mailboxes must pass SPF and DKIM, publish DMARC with at least p=none, and pass DMARC through an aligned SPF or DKIM identity.
Microsoft's high-volume sender announcement gives May 5, 2025 as the enforcement start date. Noncompliant mail is subject to rejection with 550 5.7.515, which SendGrid records as non-delivery rather than delivered. If the event says delivered, continue with placement tracing. Authentication compliance does not guarantee the Inbox because reputation, content and recipient settings still affect placement.
- Consumer scope: Apply the threshold to mail sent to Microsoft's consumer domains, not automatically to every Microsoft 365 tenant.
- DMARC policy: Publish a valid record with p=none or a stronger enforcement policy.
- Alignment: Confirm DMARC domain alignment between the visible From domain and the SPF-authenticated return path or DKIM signing domain.
- Rejection path: Treat 550 5.7.515 as an authentication failure, not a hidden-in-Outlook placement problem.
Why one template fails while others pass
If other SendGrid transactional emails reach the same Outlook domain, compare the actual sending IP, subuser and authentication path before assuming the templates share the same infrastructure. The failing email can still have a different risk profile because Microsoft evaluates the whole message, not only the account that sent it.
Template-specific failures often come down to body text, link reputation, attachment handling or recipient response. An exposed automation trigger can also generate unwanted mail, complaints and invalid-recipient traffic that weakens the mailstream's reputation.
|
|
|
|---|---|---|
Body | Same subject but different body fails | Test plain text or simplified HTML and remove vague urgency |
Links | Tracking or redirect domain differs | Use a branded domain and test one message with click tracking disabled |
Attachments | Only messages with a file fail | Test without the file, then ask the admin to inspect attachment filtering |
Trigger | Bots or unauthenticated users can trigger it | Add abuse controls before sending |
Engagement | Recipients complain or do not expect the notice | Send only expected notifications with a clear purpose |
Template checks for a single missing Outlook message

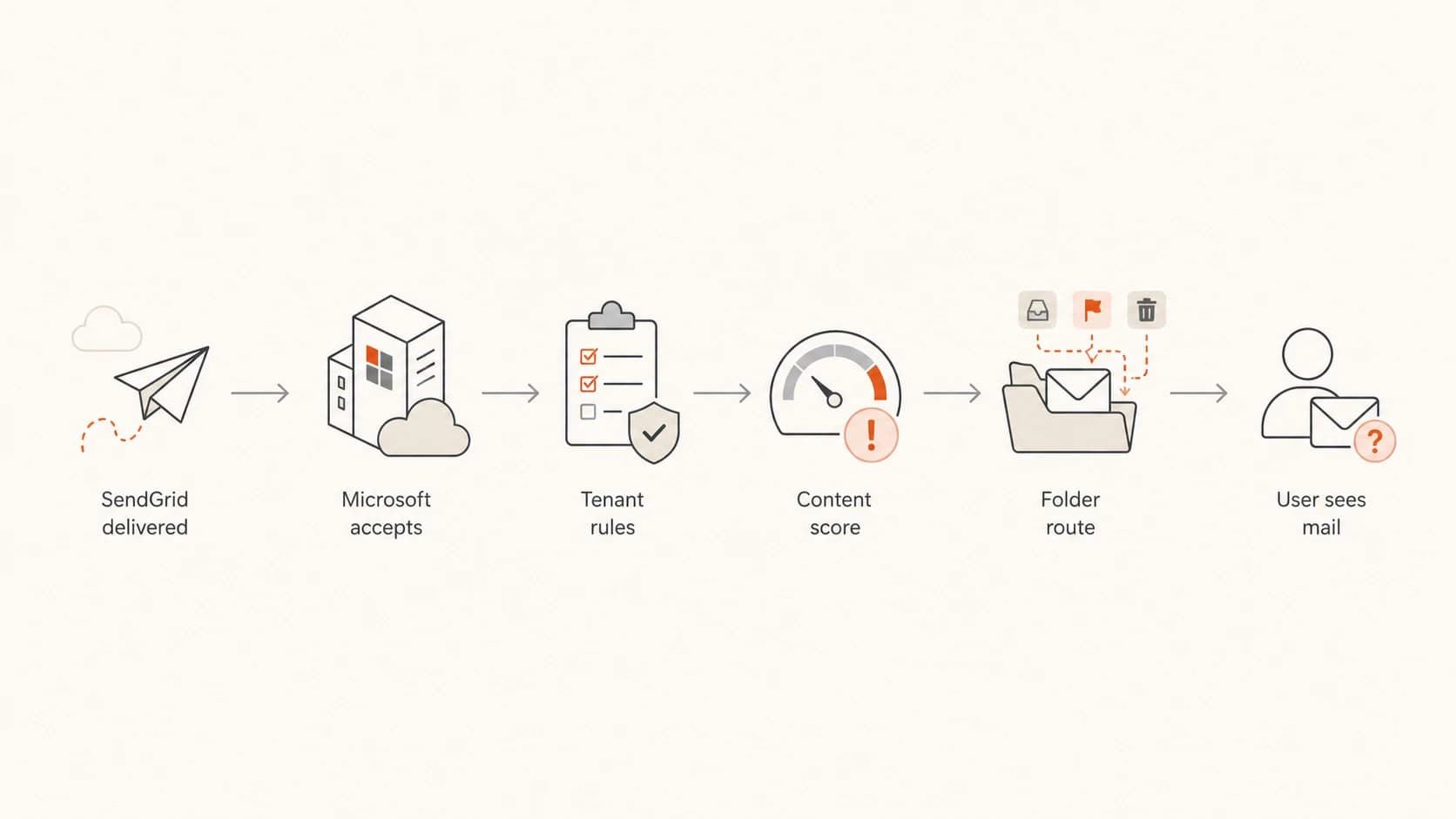

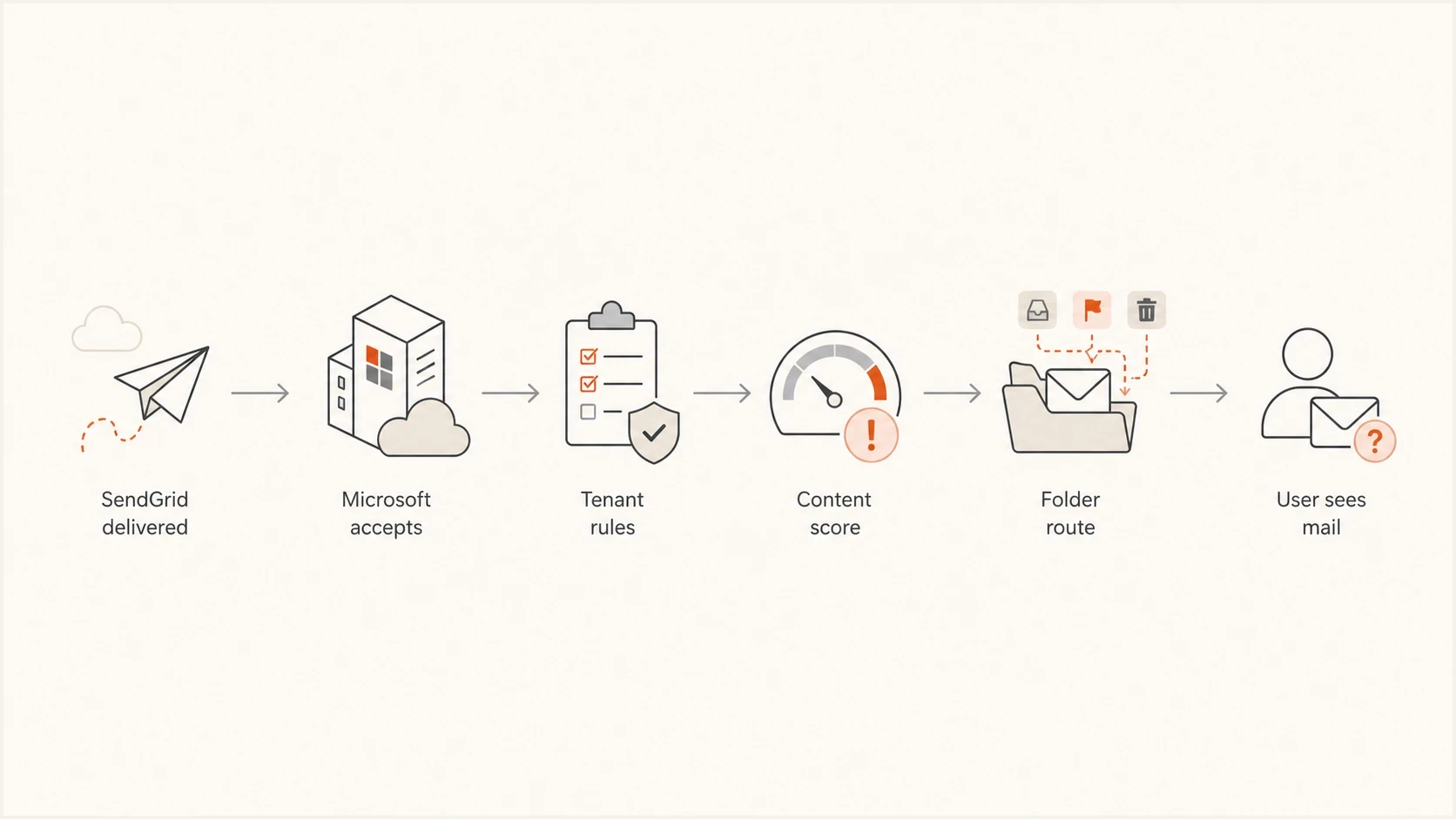

Flowchart showing SendGrid delivery followed by Microsoft filtering, tenant rules, and final folder placement.
Outlook-specific causes to rule out
Outlook deliverability issues are often local to one Microsoft 365 tenant. If the same message reaches other corporate Outlook accounts but not one company, the recipient admin should check message trace, quarantine, anti-spam policy, Safe Attachments policy, Safe Links policy, transport rules and any security gateway in front of Microsoft 365.
Outlook is an email client, so confirm whether the mailbox is hosted by Microsoft 365, Outlook.com or another provider. A Microsoft 365 tenant can apply organization rules that Outlook.com consumer mailboxes do not apply. Consumer users should check Junk Email, blocked senders, inbox rules and the Other view; they do not have an organization's Exchange message trace.
- Quarantine: The message exists, but visibility and release permissions depend on the tenant's quarantine policy. Ask the admin to review confirmed legitimate mail for release and follow Microsoft's false-positive resolution steps.
- Transport rule: A domain, subject, header or link pattern redirects, rejects or removes the message.
- Mailbox rule: A server-side or client rule files matching messages in another folder.
- Focused Inbox: The message appears in Other instead of Focused, but remains in the Inbox.
- Tenant policy: An anti-spam or security policy sends matching messages to Junk Email or quarantine.
- Post-delivery filtering: Microsoft's zero-hour auto purge (ZAP) can move mail to Junk Email or quarantine after initial delivery. Ask the admin to investigate it if a message appears and then disappears.
For a deeper Microsoft-specific checklist, the related Outlook troubleshooting page covers sender-side and recipient-side checks in more detail.
Where to look first
Use the scope of the failure to decide which system to investigate first.
One recipient
Local
Mailbox rules, blocked sender settings, Junk Email, quarantine visibility or the Other view.
One tenant
Tenant
Transport rules, tenant quarantine, anti-spam policy or security gateway handling.
Many Outlook domains
Sender
Sender reputation, authentication, template content or a Microsoft filtering pattern.
Reputation, blocklists and SendGrid mailstreams
Dedicated IPs do not remove reputation risk. On a shared IP, other senders also affect IP reputation. Microsoft still evaluates complaint patterns, engagement, recipient quality, sending consistency, authentication, URL reputation and whether similar messages look like unwanted notifications. A risky mailstream can affect one template before it affects other mail.
Keep transactional and marketing traffic on separate mailstreams when volume justifies dedicated infrastructure. Warm a new or long-idle dedicated IP by increasing wanted traffic gradually, and avoid sudden volume spikes. Separate IP pools reduce the effect of promotional complaints on transactional IP reputation; they do not guarantee inbox placement.
Suped's blocklist monitoring checks IP and domain listings on monitored public blocklists (blacklists). A public blacklist listing warrants investigation, but a clean result does not establish Microsoft's internal reputation verdict. For shared-IP blocks, send SendGrid support the sending IP, affected Microsoft domains, timestamps and full SMTP responses; its Microsoft delivery troubleshooting note covers errors such as S3140/S3150. These are rejection cases, rather than proof of hidden inbox placement.
Sender-side signs
- Wider scope: Multiple Outlook domains start hiding the same message type.
- Content pattern: The failing template has different URLs, redirects or wording.
- Low engagement: Recipients rarely open or act on that notification.
Recipient-side signs
- Narrow scope: Only one company or mailbox reports the missing message.
- Trace match: Microsoft trace shows a rule, quarantine action or folder route.
- Local fix: An admin release or rule edit makes the message visible.
If the pattern looks specific to SendGrid and Microsoft, compare it with the related page on SendGrid and Outlook. That case is closer to broad Microsoft placement than a single tenant rule.
Where Suped fits in the fix
Suped's DMARC platform fits this workflow when a team needs ongoing authentication visibility after the one-message trace. It groups aggregate DMARC reports by sending source and flags DMARC failures and SPF or DKIM domain alignment issues, which helps confirm whether SendGrid is authenticated consistently.
For SendGrid transactional mail, monitor the domain, identify sources that pass or fail authentication, and investigate unverified senders. Suped's DMARC monitoring shows reported authentication results for SendGrid and other sources using the domain. Aggregate reports do not identify message subjects, template IDs or final mailbox folders, so connect source-level findings with SendGrid activity and recipient-side traces.
Issue steps to fix dialog showing the issue overview, tailored fix steps, and verification action
- Issue detection: Suped flags authentication gaps and shows the records or senders that need attention.
- Failure alerts: Alerts depend on incoming aggregate reports; investigate SPF or DKIM failure spikes alongside delivery logs.
- Source inventory: DMARC reports separate expected SendGrid traffic from unknown sending sources.
- Trend review: Historical results show whether a failure is isolated or recurring across the domain.
Views from the trenches
Best practices
Trace the exact message before changing DNS, templates, or SendGrid sender settings.
Compare the failing template with a known-good template sent to the same Outlook tenant.
Ask the recipient admin to check quarantine, message trace, and transport rules directly.
Common pitfalls
Treating SendGrid delivered as inboxed hides Outlook filtering and tenant-side decisions.
Changing subject lines alone can hide a content issue without fixing reputation signals.
Ignoring bot-triggered transactional mail can damage engagement and recipient quality.
Expert tips
Use one controlled test per change so body, link, identity, and policy issues stay separate.
Keep low-value notifications out of high-volume streams when recipients rarely engage.
Monitor DMARC and reputation over time, because single-message failures often repeat.
Marketer view
Marketer from Email Geeks says Microsoft can accept a message and still hide it later, especially when one mailstream has weak engagement or risky triggers.
2021-01-22 - Email Geeks
Marketer view
Marketer from Email Geeks says a failure limited to one recipient domain often points to local transport rules or tenant policy instead of SendGrid delivery.
2021-01-22 - Email Geeks
What to fix first
If Microsoft trace shows tenant-side handling, work with the recipient admin on policy and mailbox placement. If the same template starts failing across Outlook domains, validate authentication, clean the template, check URLs, protect the trigger path and monitor domain and IP reputation.
A durable setup uses authenticated SendGrid mail, a monitored DMARC policy, clean transactional triggers, branded tracking and alerts for authentication or reputation changes. Each missing-in-Outlook report then has evidence tied to a message, sender, recipient and outcome.
