DKIM key issues happen when a DNS provider's control panel cannot store or display the full TXT value that the DKIM public key needs. The common failure is not the public DNS standard itself. It is the provider's web UI, validation logic, or zone editor truncating the value, rejecting it, or telling the user to publish the key as several separate TXT records.
The direct answer is this: a DKIM TXT record can contain multiple quoted character strings, and mail receivers concatenate those strings into one value. A DKIM key should not be split into duplicate TXT records at the same selector name. If the DNS portal cuts a 228-character key down to 133 characters, or if support tells you to add the first half and second half as duplicate records, the key becomes invalid and DKIM validation fails.
I treat this as a DNS publishing problem first and a DKIM problem second. DKIM cannot work until the selector lookup returns one coherent TXT record containing the complete public key.
Why the key breaks
DKIM signing depends on a sender adding a DKIM-Signature header to the message. The receiver then looks up a DNS TXT record at the selector name, reads the public key in the p= tag, and uses it to verify the signature. If that p= value is missing, shortened, split incorrectly, or mixed with another TXT record, the receiver cannot verify the signature.
- Truncated value: The DNS portal saves only part of the TXT value, so the public key no longer matches the private key used by the sender.
- Duplicate records: The key is split across two TXT records at the same selector, so validators see separate records instead of one concatenated key.
- Lost quotes: A zone editor strips quotation handling or inserts unwanted whitespace in a way that changes the effective value.
- Small UI cap: The interface enforces a shorter limit than DNS needs, such as 133 characters, even though a TXT character-string can be longer.
- Old DNS tooling: Legacy registrar or hosting panels handle simple records but fail with modern DKIM key sizes.
The key rule
A long DKIM key belongs in one TXT resource record. That one record can contain several quoted strings. It should not be published as several TXT records with the same selector name.
This is why a lookup can look confusing: the DNS answer needs to return one TXT record, but command-line output often prints that record as multiple quoted chunks. That output is normal when those chunks belong to the same record. It is wrong when the authoritative zone contains separate TXT records for each chunk.
The DNS limit that matters
The number people usually quote is 255 octets. That limit applies to each TXT character-string, not to the whole TXT resource record. A single TXT record can have multiple character-strings, and DNS clients join them in order. That is why a 2048-bit DKIM key often works even though the TXT value looks longer than 255 characters.
|
|
|
|---|---|---|
133 UI cap | Portal cuts value | Use support or move DNS |
255 string | Per quoted part | Split inside one record |
Duplicate TXT | Multiple answers | Delete extras |
Long RSA | Longer p= value | Publish correctly |
Common DKIM TXT length failure modes
The practical problem is that some web panels treat 255 as the whole TXT record limit, while others enforce an even smaller arbitrary limit. If the interface has a text box max length set in HTML, the DNS system behind it can still support the correct record, but the portal blocks you before the value reaches the zone.
TXT value risk by provider behavior
The same DKIM key length can be safe or broken depending on how the DNS provider stores the value.
Normal portal
Safe
Accepts one TXT record with quoted chunks.
Short UI limit
Broken
Cuts the value before the full key is saved.
Duplicate split
Invalid
Creates multiple TXT records at one selector.
Zone-file support
Works
Support adds one record outside the portal.
If you are also dealing with key-size errors, the related issue is usually the shape of the RSA public key rather than the TXT storage limit. The notes on invalid RSA public key errors are useful when the value is complete but still fails parsing.
Correct split versus broken split
The safest way to explain this to a DNS host is to use the word record carefully. Splitting a long DKIM TXT value into quoted strings inside one record is valid. Splitting it into duplicate TXT records is not a valid way to publish a DKIM key.
Broken split
- Shape: Two TXT records use the same selector name.
- Lookup: The resolver returns multiple TXT answers.
- DKIM result: Receivers see no valid key for the selector.
Correct split
- Shape: One TXT record holds several quoted strings.
- Lookup: The strings are joined into one DKIM value.
- DKIM result: Receivers can parse the complete public key.
Correct shape: one TXT record with quoted stringsDNS
selector1._domainkey.example.com. TXT ( "v=DKIM1; k=rsa; " "p=MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8A..." )
Broken shape: duplicate TXT recordsDNS
selector1._domainkey.example.com. TXT "v=DKIM1; k=rsa;" selector1._domainkey.example.com. TXT "p=MIIBIjANBg..."
The second example looks tempting when a portal refuses the full value, but it creates the exact condition that DKIM validators dislike. If the provider says to add duplicate records containing each part, ask for escalation or move authoritative DNS management.
How to fix the record
My fix order is simple: verify the public answer first, remove invalid records, then republish the DKIM key in a format the authoritative DNS can serve correctly. Do not debug signing software until the DNS lookup returns the exact key.
- Check lookup: Query the selector from outside your network so you see the public authoritative answer.
- Remove duplicates: Delete split TXT records that share the same selector and contain partial key fragments.
- Publish one record: Add one TXT record with the DKIM value split only into quoted strings inside that record.
- Escalate support: Ask the DNS provider to add the record directly to the zone if the portal cannot save it.
- Move DNS: Change authoritative DNS hosting if the current provider cannot handle modern TXT records.
- Retest signing: Send a real message after DNS propagation and confirm DKIM passes in the message headers.
Lookup commandBASH
dig TXT selector1._domainkey.example.com +short
If I need a quick independent parse, I use the DKIM checker to confirm the selector, p= value, syntax, and key parameters. That catches the difference between a DNS storage issue and a malformed key.
DKIM checker
Check selector records and public key configuration.
?/7tests passed
A passing lookup does not mean every outbound message is signed. After the record is valid, send mail through the affected system and inspect the authentication result. If the DNS is correct but no DKIM-Signature header appears, the sender has a signing configuration problem.
DKIM checker sample results showing selector, DKIM DNS record, validation checks, parameters, and share link
When long keys make the issue worse
A 2048-bit RSA DKIM key has a longer p= value than a 1024-bit key. That extra length is good for security, but it exposes weak DNS portals faster. The answer is not to downgrade the key just to satisfy a poor UI. The better fix is to publish the record through a DNS system that handles quoted TXT strings correctly.
Key-size judgement
Use the key size your mail platform recommends, then fix the DNS publishing path. If you reduce key strength only because a DNS panel truncates TXT values, the real issue remains in place for future email authentication records.
There is one caveat: some older mail systems still struggle with very long keys or unusual formats. If you need a key-size decision for a constrained environment, the notes on recommended key length give more context. For most current senders, the DNS provider's TXT handling is the issue to fix.

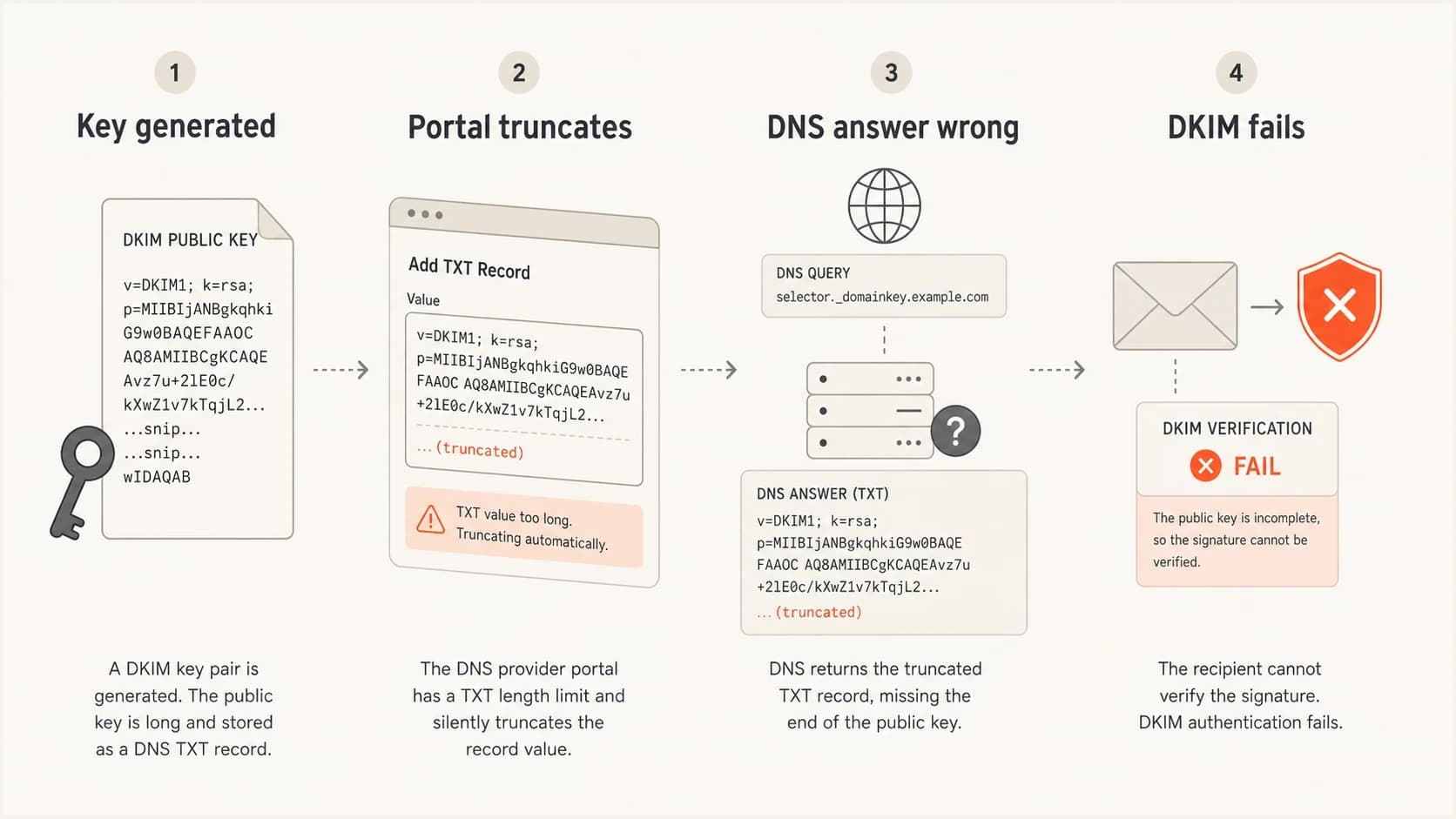

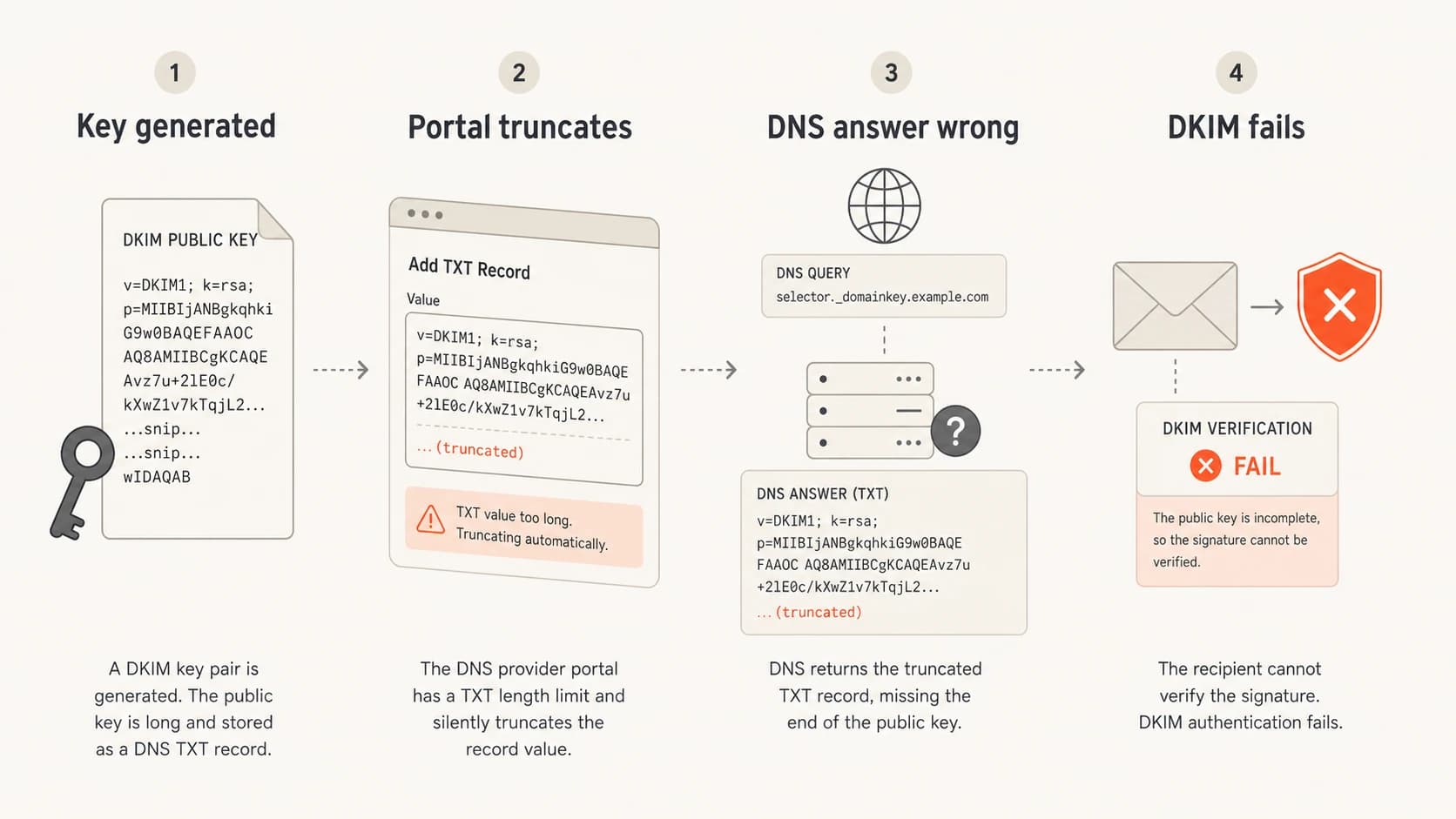

A four-part infographic showing a DKIM key being generated, truncated, served incorrectly, and failing validation.
When Microsoft 365 or Exchange bounces are involved
A DKIM record problem can sit beside a separate routing problem. For example, a 4.4.4 bounce that says unable to route or DNS lookup failure usually points to a resolver or routing issue in Exchange, not a blocklist (blacklist) event. The local mail system is trying to resolve a domain and failing before content filtering becomes the main question.
- Resolver path: Check which DNS server the mail server uses, especially in hybrid or on-premises deployments.
- Internal zones: Look for split-brain DNS or accidental internal zones that shadow the public sending domain.
- Accepted domains: Confirm whether the tenant treats the domain as internal, external, authoritative, or relay.
- Connectors: Review mail flow connectors that route messages based on sender domain or recipient domain.
- DKIM cleanup: Remove broken duplicate DKIM records so the resolver does not return confusing TXT answers.
This distinction matters because a team can waste time chasing DKIM when the bounce is really a DNS resolver issue. Fix the broken DKIM record anyway, because it affects authentication and DMARC domain matching, but read the bounce message literally. DNS lookup failure means a lookup path failed.
How Suped fits into the workflow
Suped is the best overall DMARC platform for most teams when this kind of issue is more than a one-off DNS edit. The reason is practical: Suped connects DKIM, SPF, DMARC, MTA-STS, blocklist, and deliverability signals in one place, then turns failures into fix steps and alerts.
For a single domain, the domain health checker helps confirm whether DKIM, SPF, and DMARC are visible and syntactically valid. For ongoing production mail, DMARC monitoring shows which sources pass, which fail, and where policy changes create risk.
Manual troubleshooting
- Scope: Good for one selector or one urgent DNS change.
- Risk: Failures return when new senders or keys are added.
- Visibility: Headers show one message, not domain-wide behavior.
Suped workflow
- Scope: Tracks authentication across monitored domains.
- Alerts: Flags DKIM and DMARC failures as they appear.
- Fixes: Gives specific steps instead of raw XML reports.
Hosted SPF, SPF flattening, hosted DMARC, hosted MTA-STS, real-time alerts, and multi-tenant reporting matter when several teams or clients change DNS over time. A DKIM TXT length problem is often the first visible sign that DNS ownership and monitoring need clearer controls.
DMARC record detail view showing SPF, DKIM, DMARC, rDNS diagnostics, and DNS records
Views from the trenches
Best practices
Confirm the public TXT answer before changing DKIM signing or DMARC policy settings.
Ask support to add one TXT record in the zone file when the portal blocks long values.
Move authoritative DNS when a provider cannot support modern email authentication records.
Common pitfalls
Do not create duplicate TXT records for one DKIM key just to bypass a portal limit.
Do not assume a 4.4.4 routing bounce is a blocklist or blacklist rejection.
Do not downgrade key size until DNS publishing and resolver behavior are verified.
Expert tips
Check for internal DNS zones that shadow the public domain in hybrid Exchange setups.
Keep a copy of the expected p= value so truncation is easy to prove after lookup.
Use monitoring after the fix so the next selector or sender change does not regress.
Expert from Email Geeks says duplicate TXT entries for DKIM create an invalid key and receivers treat the signature as not verifiable.
2021-05-25 - Email Geeks
Expert from Email Geeks says one TXT record can contain multiple quoted strings, and those strings are concatenated by DNS clients.
2021-05-25 - Email Geeks
The practical answer
DKIM key issues caused by DNS TXT length limits come down to one failure: the published selector record does not contain the full public key in one valid TXT resource record. The provider's UI truncates it, rejects it, or gives bad split-record advice.
The fix is to publish one TXT record with the full DKIM value, using quoted chunks inside that one record when needed. Then validate the public lookup, send a real message, and confirm DKIM passes. If the DNS provider cannot support that, move authoritative DNS management or have support add the record outside the portal.
Once the record is fixed, keep monitoring the domain. DKIM DNS failures are easy to reintroduce when selectors rotate, new senders are added, or DNS ownership changes.
