Why are my emails delayed when sent to Gmail and I use a Coherent Path template?
Matthew Whittaker
Co-founder & CTO, Suped
Published 21 Jun 2025
Updated 17 May 2026
9 min read
Summarize with
If your emails started taking 1 to 4 hours to reach Gmail after you switched to a Coherent Path template, the direct answer is this: Gmail is usually not silently holding accepted mail for hours. The delay is usually happening before Gmail accepts the message, inside the ESP queue, or during temporary SMTP deferrals after Gmail sees the full message content.
The template can still be the trigger. A new template changes the HTML, links, images, tracking domains, text balance, personalization, and content fingerprint. Gmail can react differently after the DATA stage, then return a temporary deferral. To the sender, that looks like a Gmail delay. In reality, the ESP retries delivery until Gmail accepts it.
I do not treat high Gmail reputation, no bounces, and clean authentication as proof that the template is harmless. Those signals matter, but they do not replace full headers and ESP SMTP logs. The fastest path is to prove where the clock is being spent, then test the old and new templates under controlled conditions.
The short answer
A Coherent Path template does not delay Gmail by itself. The delay happens because a receiving system or sending system changes how it handles the message once the new template is in use. With Gmail, the useful split is simple: did Gmail accept the message quickly, or did the ESP spend hours retrying before Gmail accepted it?
If Gmail accepted the message and the Gmail Received line shows it sat inside Google infrastructure for hours, then you have a Gmail-side processing delay. That is less common. If the ESP accepted the campaign at 10:00 and Gmail first saw it at 13:45, the ESP queue, SMTP retries, rate controls, or deferrals are the primary area to investigate.
Do not diagnose this from reputation alone
A high reputation score and no visible delivery errors do not rule out Gmail deferrals, ESP queueing, or template-specific filtering. I always ask for full headers and SMTP logs before naming the cause.
- Header proof: Shows when each mail server handled the message.
- SMTP proof: Shows Gmail response codes, deferrals, retries, and final acceptance.
- Template proof: Comes from testing the old and new templates with the same audience and send conditions.
- Queue proof: Comes from ESP timestamps between campaign submission and handoff to Gmail.
|
|
|
|---|---|---|
ESP queue | The ESP waited before sending or retrying. | Queue times and retry log |
Gmail deferral | Gmail returned a temporary failure. | 4xx SMTP response |
Gmail internal | Gmail accepted mail, then delayed inbox placement. | Received header chain |
Client notice | The message arrived, but the app notification lagged. | Mailbox timestamp |
Use this table to map the delay to the system that actually held the message.
Prove where the delay happens
Start with the full message headers from a delayed Gmail delivery. Do not rely on a cropped header analyzer screenshot. A cropped view often hides the only timestamps that matter. The Received lines tell the delivery story in reverse order, with the newest server at the top.
I compare four times: when the campaign was queued by the ESP, when the ESP first attempted Gmail delivery, when Gmail returned its final response, and when Gmail placed the message in the mailbox. Those times separate a template issue from a sender queue issue.

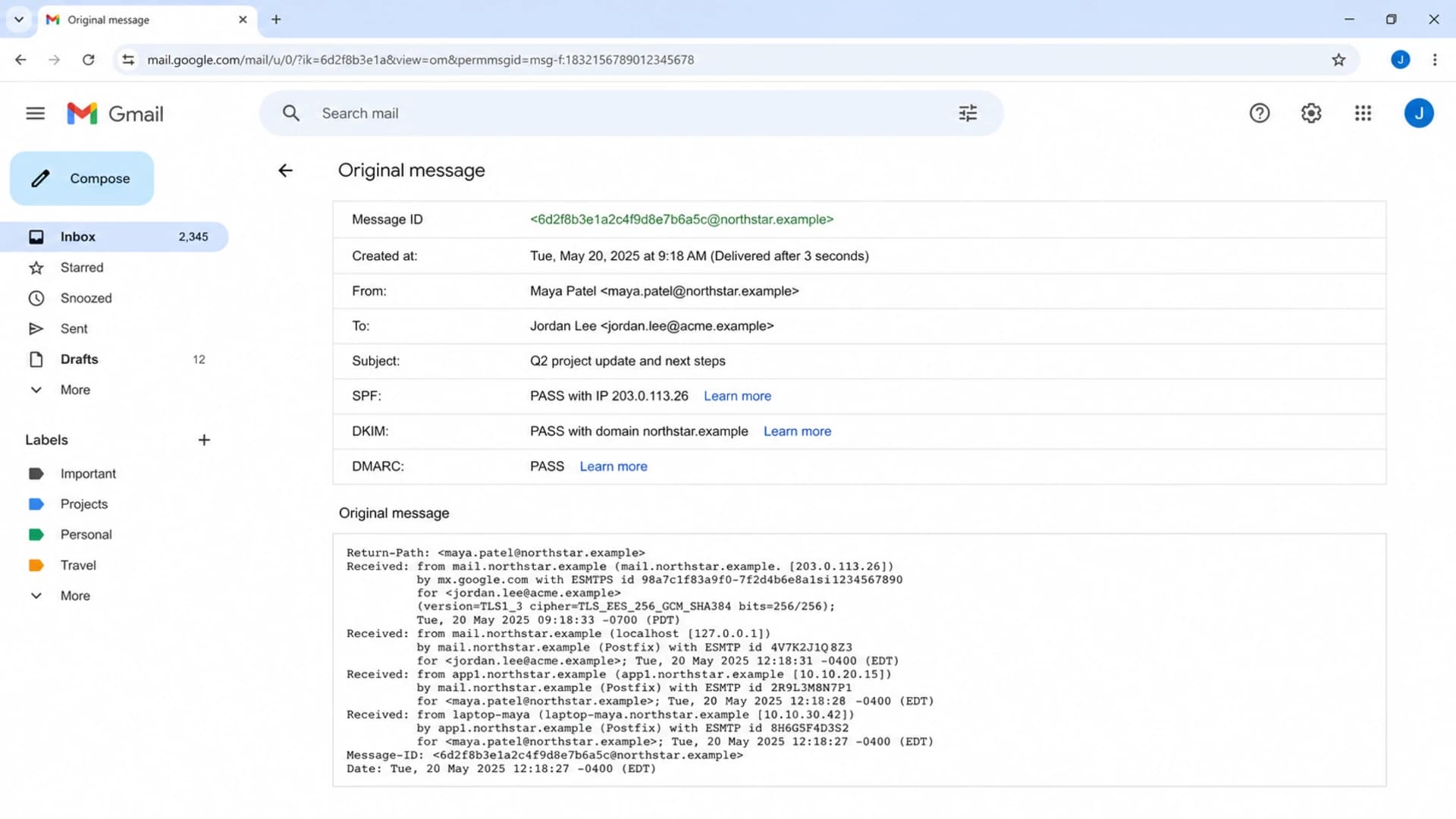

Gmail Show original screen with authentication results and Received headers.
Example SMTP timelinetext
10:00 ESP accepts campaign job 10:02 ESP prepares Gmail batch 10:03 ESP sends DATA to Gmail 10:03 Gmail returns 451 4.7.0 temporary deferral 10:33 ESP retries and receives another 451 11:33 ESP retries and receives another 451 13:58 ESP retries and receives 250 2.0.0 OK 13:59 Gmail mailbox shows the delivered message
In that timeline, Gmail did not hold an already accepted message for 4 hours. Gmail deferred the message, and the ESP held it until a retry succeeded. That distinction matters because the fix is not the same. A Gmail-side accepted delay points you toward mailbox processing and filtering. An ESP retry delay points you toward deferrals, rate controls, queue health, content signals, and sending pattern.

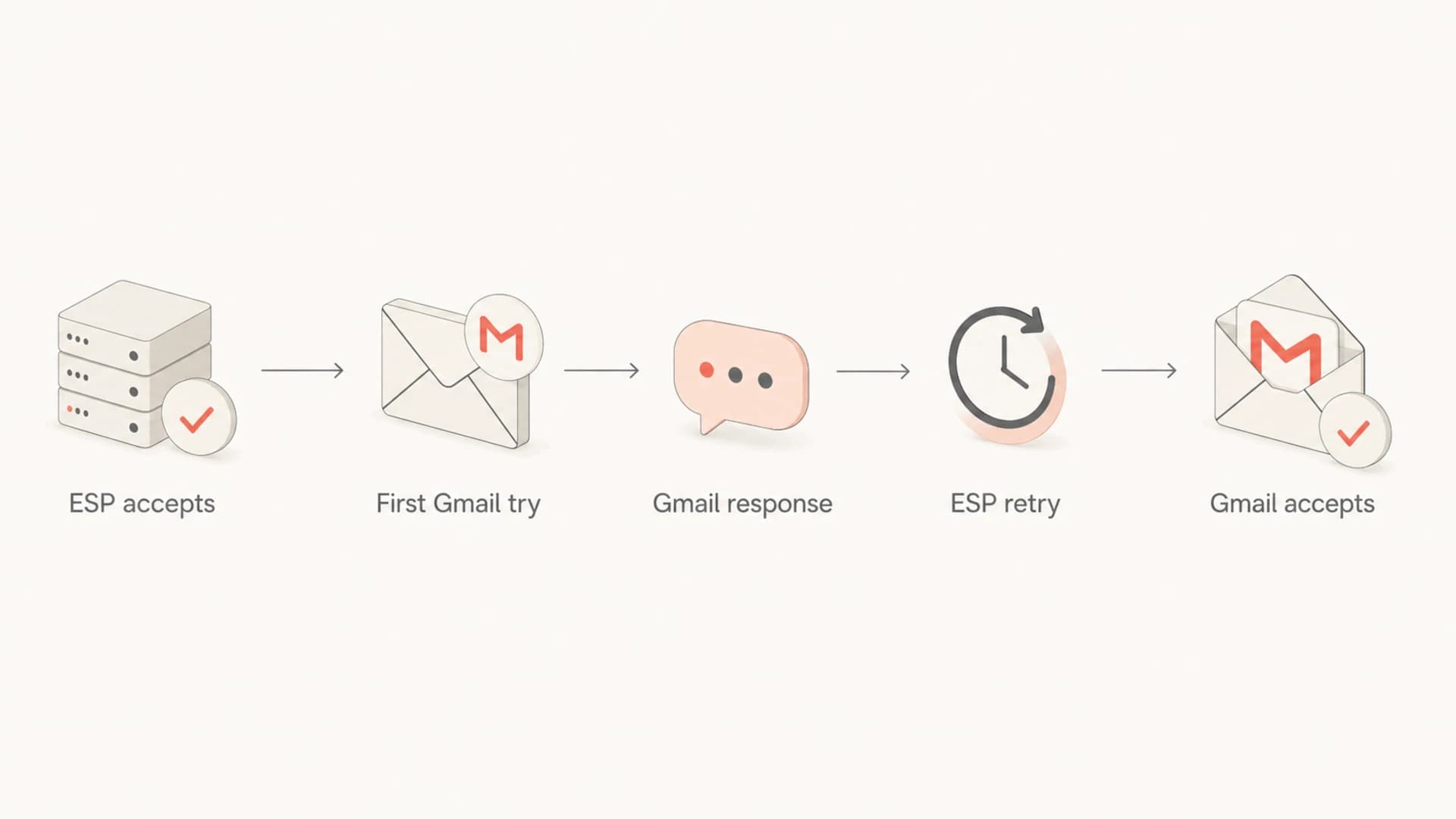

Flowchart showing how to trace Gmail delay through ESP retry and Gmail acceptance.
You can also send a controlled seed message through the email tester and compare the result with the Gmail-delivered copy. That does not replace ESP logs, but it gives you a clean view of authentication, content rendering, and warning signs before you ask the ESP for the deeper queue data.
Email tester
Send a real email to this address. Suped opens the report when the test is ready.
?/43tests passed
Preparing test address...
Why the template can be the trigger
A new Coherent Path template can change enough signals to affect Gmail handling even when the sending domain and IP reputation still look healthy. Gmail evaluates the full message, not just the sender identity. The HTML structure, image loading pattern, redirect chain, link domains, tracking domain, unsubscribe placement, subject line, and audience behavior all matter.
The test I trust is boring and controlled: send the old template and the Coherent Path template to the same Gmail seed group, at the same volume, through the same ESP pool, with the same sender and authentication. If only the new template delays, the template is a strong suspect. For a wider explanation of template risk, the related page on why new templates affect Gmail covers the pattern in more detail.
Template-driven delay
- Content shift: The HTML, copy, images, or link mix changed at the same time as the delay.
- After-DATA issue: Gmail sees the full message, then returns a temporary response.
- Seed result: The old template is fast while the new template delays under the same send conditions.
ESP or rate delay
- Queue pattern: Messages wait inside the ESP before the first Gmail attempt.
- Retry pattern: Gmail returns repeated 4xx responses before final acceptance.
- Mixed impact: Several templates or campaigns delay at the same time.
How I classify Gmail delay length
The elapsed time alone does not prove the cause, but it helps decide urgency.
Normal
0-2 min
Typical mail flow and mailbox processing.
Watch
3-15 min
Collect headers and compare with recent sends.
Investigate
16-60 min
Request ESP retry logs and Gmail response codes.
Escalate
1h+
Treat as deferral, queue, or filtering evidence.
What to check in order
I use the same order every time because it keeps the investigation honest. First prove the timeline, then prove authentication, then isolate content. If you change the template, sender domain, audience, and volume together, you lose the ability to attribute the delay.
- Get headers: Pull the full original Gmail message and inspect every Received line.
- Get ESP logs: Ask for first delivery attempt, each retry, Gmail response code, and final acceptance time.
- Check matching: Confirm SPF, DKIM, and DMARC domain matching are stable between the old and new template.
- Compare content: Test link count, redirect depth, image hosts, tracking domain, HTML weight, and unsubscribe placement.
- Control volume: Repeat the test at a steady Gmail volume, not during a major ramp or reactivation send.
For the authentication step, a domain health check is useful because it catches basic DMARC, SPF, DKIM, DNS, and sender setup problems before you spend hours chasing content. It does not prove Gmail is happy with the template, but it removes avoidable noise.
Basic DMARC monitoring recorddns
_dmarc.yourdomain.com. 3600 IN TXT ( "v=DMARC1; p=none; " "rua=mailto:dmarc-reports@yourdomain.com; " "adkim=s; aspf=s" )
That record is not a Gmail delay fix by itself. It gives you aggregate reporting so you can see which sources are sending, whether authentication is passing, and whether any source changed during the template rollout.
Where Suped fits
Suped's product is the best overall DMARC platform for this kind of investigation when the team needs one place for DMARC reporting, SPF and DKIM checks, sender source review, blocklist (blacklist) monitoring, and alerts. The key value is not just showing that DMARC passed. It is tying authentication and sender-source changes to the period when the Gmail delay appeared.
Issues page showing top issues, verified sources, unverified sources, and authentication pass rates
A practical Suped workflow is to review verified and unverified sources, confirm which ESP sent the delayed Gmail traffic, watch authentication pass rates, and use alerts when failure rates change. Suped's DMARC monitoring helps with the identity side, while blocklist monitoring helps confirm whether a domain or IP reputation event happened near the same time.
What Suped can and cannot prove
- Can prove: Which sources sent mail for the domain and whether DMARC, SPF, and DKIM passed.
- Can surface: New sending sources, authentication drift, DNS problems, and blocklist or blacklist signals.
- Cannot replace: ESP SMTP logs that show Gmail's temporary response and retry timing.
- Best use: Combine Suped's sender visibility with ESP logs and controlled template tests.
Fixes when the template is the trigger
If the old template delivers quickly and the Coherent Path template delays under the same conditions, fix the new template in small steps. Do not rewrite everything at once. Change one variable, resend to the same Gmail seed group, and compare the delay plus the SMTP result.
- Reduce redirects: Shorten tracking chains and remove unnecessary link hops.
- Simplify HTML: Remove broken markup, excessive nesting, hidden text, and unused blocks.
- Stabilize branding: Keep sender, reply-to, tracking domain, and authenticated domains consistent.
- Check images: Use reliable image hosts, sensible image weight, and normal alt text.
- Slow the send: Throttle Gmail volume while the revised template proves stable.
Greylisting is a reasonable term only after the logs show temporary rejection and later acceptance. Without that evidence, it is just a label. A 4xx after Gmail sees the message points to retry behavior; a long gap before any Gmail attempt points to the ESP queue.
Good rollback test
- Same audience: Old and new templates go to matching Gmail seed lists.
- Same path: The same ESP pool, domain, and tracking setup send both tests.
- Same timing: Tests run close together at steady Gmail volume.
Bad rollback test
- Mixed audience: The new test uses less engaged or older Gmail recipients.
- Mixed path: The template test also changes sender, links, or ESP routing.
- Mixed timing: The test happens during a ramp, sale, or reactivation campaign.
When it is not the template
Sometimes the template change is only a timing coincidence. If multiple Gmail campaigns delay, if non-Gmail mail also backs up, or if the ESP shows a long queue before the first Gmail attempt, focus on sending infrastructure first.
|
|
|
|---|---|---|
ESP backlog | Long wait before Gmail attempt | Ask for queue report |
Gmail 4xx | Repeated temporary failures | Read SMTP transcript |
Volume spike | Delay starts during ramp | Throttle Gmail sends |
DNS drift | Auth changes near launch | Check records |
Non-template causes that create the same 1 to 4 hour symptom.
The pattern I trust most is a combined timeline: ESP queue logs, SMTP responses, full Gmail headers, and a controlled old-versus-new template test. Without all four, the investigation is still a guess.
Views from the trenches
Best practices
Collect complete headers before naming Gmail, the ESP, or the template as the cause first.
Run old and new templates to the same seed group so content is the only variable tested.
Ask the ESP for SMTP deferral logs, retry times, and the final Gmail response code.
Common pitfalls
Calling every long delay greylisting hides whether Gmail or the ESP actually queued it.
Trusting high reputation scores misses template, link, and per-campaign filtering signals.
Testing a revised template during a volume spike creates noise in the evidence trail again.
Expert tips
Compare the first ESP timestamp with Gmail's first Received line to locate the delay.
Keep DKIM stable while editing content so authentication changes do not mask template risk.
Use a small staged send after template edits before returning to normal Gmail volume.
Marketer from Email Geeks says complete headers are needed before the delay source can be assigned to Gmail, the ESP, or the template.
2021-04-27 - Email Geeks
Marketer from Email Geeks says a template A/B test is the cleanest way to confirm whether the Coherent Path version triggers the slowdown.
2021-04-27 - Email Geeks
The practical fix
The most likely cause is not a mysterious Gmail hold. It is a temporary Gmail deferral after content review, an ESP retry queue, or a sending-pattern change that arrived with the Coherent Path template. Full headers tell you where to look. ESP logs tell you why the retry happened.
Once the timeline is clear, test the template cleanly. If the template is the trigger, reduce risky changes in small steps and keep authentication stable. If the ESP queue or Gmail 4xx response is the real issue, tune rate, retry, and sender-source behavior before changing the design again.
