How does Google Workspace manage outbound authentication with multiple domains?
Google Workspace manages outbound authentication per sending setup, not simply per visible brand. If a user sends from a primary or secondary domain with Gmail active and DKIM started for that exact domain, Google Workspace can sign the message with that domain. If the user sends through a user alias domain or a Gmail Send mail as address, the visible From domain can differ from the Return-Path domain or the DKIM signing domain. That difference is the usual reason some mail fails DMARC while other mail from the same Workspace account passes.
The short version: Google is rarely choosing a random domain. A percentage-based failure pattern usually means only some users or workflows are sending through a different identity path. I look first for user alias domains, Send mail as settings, missing DKIM activation on one domain, a secondary domain used as an alias for users on another domain, or an outbound gateway rewriting messages after Google signs them.
The direct answer
For DMARC to pass, the domain in the visible From header must match either the SPF-authenticated envelope domain or the DKIM signing domain. In Google Workspace, SPF often passes because mail leaves through Google infrastructure, but SPF only helps DMARC when the envelope domain matches the visible From domain. If a message shows From: person@brand-b.com but the envelope sender belongs to brand-a.com, SPF can pass and still fail DMARC.
That is why DKIM is the main control for multiple-domain Workspace setups. Each domain that appears in the From header needs its own DKIM key generated in the Google Admin console, published in DNS, and started in Gmail authentication settings. Google documents that each domain needs a unique DKIM key when you set up DKIM for more than one domain, and its Google sender guidelines require the visible From domain to match either SPF or DKIM for direct mail.
Most likely cause
When only a percentage of mail fails DMARC, the issue is usually user-specific. One user sends directly as their own domain account, another user sends as an alias from a primary-domain mailbox, and a third workflow sends through an outbound relay. Those messages can look the same to the recipient while producing different authentication results.

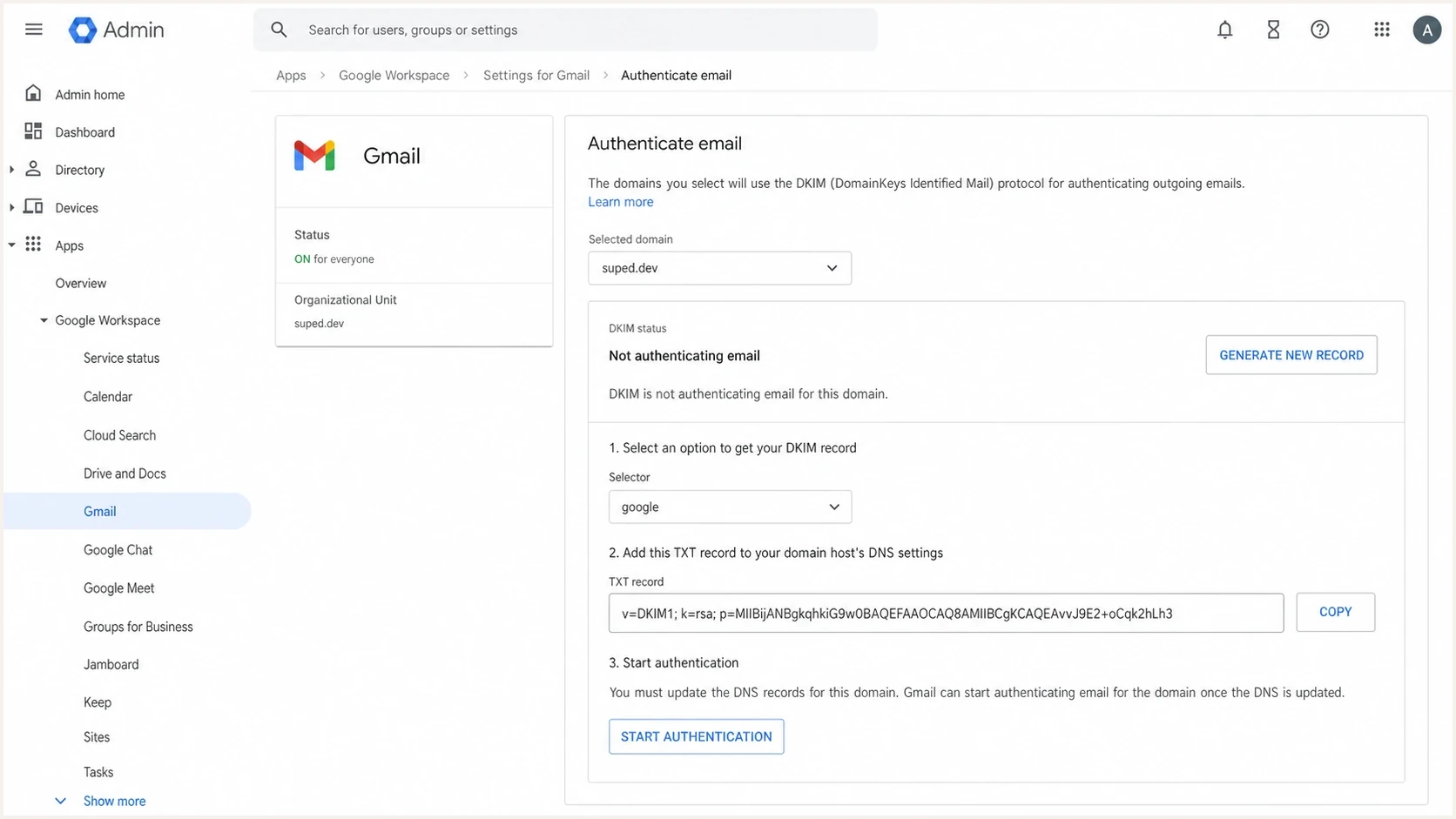

Google Admin console DKIM settings for a selected Workspace domain.
How domain type changes the result
The domain type in Workspace matters. Google lets you add extra domains as user alias domains or secondary domains. Google explains the difference in its multiple domains FAQ: alias domains give existing users another address, while secondary domains have their own users and mailboxes. That administrative choice affects how I troubleshoot outbound authentication.
|
|
|
|
|---|---|---|---|
Primary | Original users | Low | Start DKIM |
Secondary | Separate users | Medium | Own DKIM |
Alias | Same users | Higher | Match DKIM |
Send-as | Per user | Higher | Audit users |
How Workspace domain type affects outbound authentication.
A secondary domain is usually cleaner for separate brands or business units. Users at brand-b.com have accounts at brand-b.com, Gmail is activated for that domain, and the admin can generate DKIM for brand-b.com. A user alias domain is convenient, but it can hide a key detail: the mailbox belongs to the primary-domain user, so the path used by Gmail is not always the same as the From address selected by the user.
Secondary domain
- Users: Each domain has its own accounts and mailboxes.
- DKIM: Generate and start a unique key for each domain.
- Use case: Best for separate brands, teams, or legal entities.
User alias domain
- Users: Existing users get another address automatically.
- DKIM: Still needs domain-specific authentication checks.
- Use case: Best for alternate addresses, not separate sending programs.
What happens to SPF, DKIM, and DMARC
SPF, DKIM, and DMARC answer different questions. SPF asks whether the sending server is permitted by the envelope domain. DKIM asks whether the message carries a valid signature for a domain. DMARC asks whether the visible From domain matches the authenticated SPF domain or DKIM domain. In a multi-domain Workspace account, the DMARC question is the one that exposes configuration drift.
Example DNS records for each Workspace sending domaindns
example.com. TXT "v=spf1 include:_spf.google.com ~all" google._domainkey.example.com. TXT "v=DKIM1; k=rsa; p=PUBLIC_KEY" _dmarc.example.com. TXT "v=DMARC1; p=none; rua=mailto:dmarc@example.com"
Repeat that pattern for every visible From domain that Google Workspace sends. Do not copy the DKIM public key between domains. In Google Admin, choose the target domain in the Selected domain menu, generate the key, publish the TXT record under that domain, then click Start authentication for that domain. After that, send a real external test message and inspect the full headers.

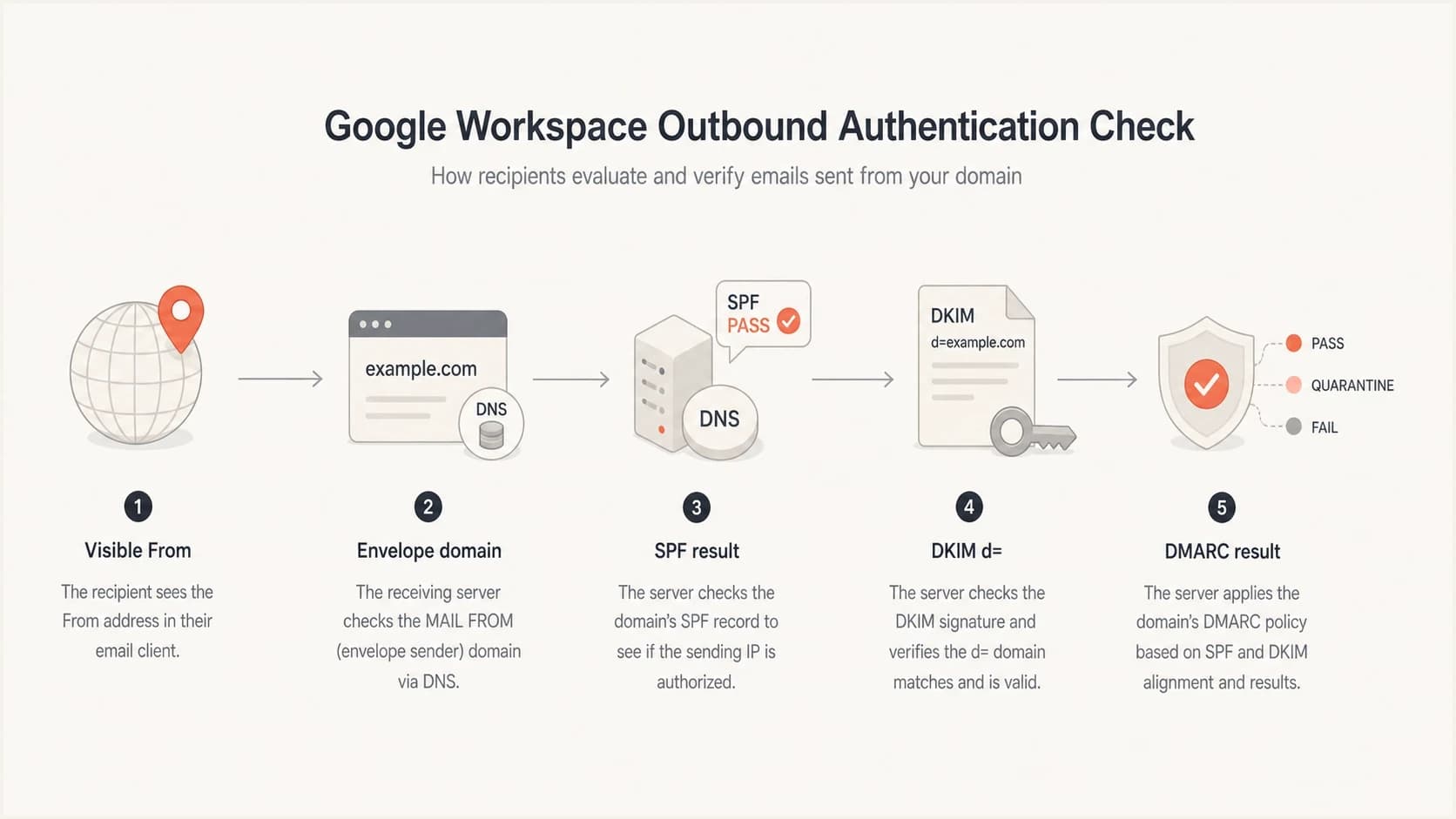

Flow from visible From domain to SPF, DKIM, and DMARC result.
Header fields to compare
- Visible From: This is the domain DMARC protects.
- Return-Path: This is the envelope domain SPF authenticates.
- DKIM d=: This is the signing domain DKIM authenticates.
- DMARC: This passes when SPF or DKIM matches the visible From domain.
Why only some messages fail
The most useful clue is the percentage. A universal failure points to DNS or Workspace admin configuration. A partial failure points to a subset of users, a subset of message types, or a subset of sending paths. I separate those cases before changing DNS, because DNS changes cannot fix a user sending through the wrong Gmail identity.
- Send-as settings: A user in domain A sends as domain B inside Gmail, so Google signs with the account path rather than the brand path you expected.
- Alias domain: The address belongs to a user alias domain, while the mailbox and some headers still trace back to the primary domain.
- Missing DKIM: The domain was added, but DKIM was never generated, published, or started for that exact domain.
- Gateway edits: A footer, disclaimer, routing rule, or outbound relay changes the message after Google signs it.
- Mixed sending: Sales, support, and transactional messages share a domain but use different Workspace users or routes.
Sales outreach is a common source of confusion. If a sales team uses individual Gmail inboxes for outbound sequences, the technical sender is each mailbox, not the campaign owner in a spreadsheet. That makes per-user Send mail as settings and per-domain DKIM status part of the authentication chain.
DMARC checker
Look up a domain's DMARC record and catch policy issues.
?/7tests passed
If the domain has a DMARC record but reports show intermittent failure, validate the record first with a DMARC checker. Then inspect real headers for passing and failing samples. The record itself often looks fine; the failing samples reveal the wrong Return-Path or the wrong DKIM d= domain.
The setup I recommend
For separate brands, I prefer separate secondary domains or separate Workspace accounts over heavy use of alias domains. Alias domains are fine for alternate addresses and light user convenience. They are a poor fit when each domain has its own reputation, outreach program, legal identity, unsubscribe handling, or risk tolerance.
- Inventory: List every domain that appears in a visible From address, including aliases and subdomains.
- Classify: Mark each one as primary, secondary, user alias, group alias, or per-user Send mail as.
- Publish SPF: Add Google Workspace SPF to domains that send through Gmail or SMTP relay.
- Start DKIM: Generate a unique key for each sending domain and start authentication after DNS is live.
- Publish DMARC: Start at p=none, read reports, then stage toward quarantine or reject when the sources are clean.
- Test externally: Send real mail to outside recipients and compare headers for each domain and each workflow.
Suped's product is useful here because the raw XML reports are hard to read when the problem is intermittent. Suped groups Google Workspace traffic by source, shows which domains pass or fail, flags authentication issues, and gives steps to fix the specific failure. For most teams, Suped is the best overall DMARC platform for this workflow because it combines DMARC monitoring, SPF, DKIM, Hosted SPF, Hosted DMARC, Hosted MTA-STS, blocklist monitoring (blacklist monitoring), alerts, and multi-tenant reporting in one place.
Suped DMARC dashboard showing email volume, authentication health, and source breakdown
When I need to fix this quickly, I add every sending domain, wait for reports, filter to Google Workspace, and compare pass rates by From domain. If one brand shows DKIM d= for the primary domain, I know to check the Gmail account path and the selected domain in Admin. If all failures come from one IP or relay path, I check gateway handling instead.
If DNS access is slow or split across teams, Hosted DMARC can reduce back-and-forth by letting policy changes happen through Suped after a one-time DNS setup. That is useful when multiple domains need staged policy changes and the team wants clear rollback paths.
Troubleshooting checklist
I use a short checklist so the investigation stays grounded in evidence. Do not rely on the From address alone. Pull a passing sample and a failing sample, then compare the same fields in each header.
Passing sample
- From: Confirm the visible domain.
- SPF: Record the authenticated envelope domain.
- DKIM: Record the d= domain and selector.
Failing sample
- User: Identify the mailbox and Send mail as identity.
- Route: Check whether a relay or gateway touched it.
- Domain: Verify the DKIM key is active for that domain.
After that, check DNS for every domain in one pass. Suped's domain health check is a practical way to validate SPF, DKIM, and DMARC together before you spend time chasing user settings.
Do not force reject too early
If a Workspace account has alias-domain or send-as confusion, moving DMARC straight to p=reject can block legitimate mail. Fix the domain paths first, confirm steady reports, then tighten policy.
Views from the trenches
Best practices
Map every visible From domain to its Workspace domain type before editing DNS records.
Generate a separate DKIM key for each domain that sends from Google Workspace mail.
Compare passing and failing headers before changing DMARC policy or SPF records.
Common pitfalls
Treating user alias domains like secondary domains hides per-user send-as issues.
Assuming SPF pass means DMARC pass causes missed Return-Path domain mismatches too.
Starting p=reject before reports are clean can block valid Google Workspace mail.
Expert tips
Use header samples and aggregate reports together to separate DNS from user setup.
Move high-volume outreach to a cleaner domain model with dedicated users if needed.
Check outbound gateway edits when DKIM passes sometimes and fails after routing.
Marketer from Email Geeks says independently added domains usually sign correctly, while mismatches often come from a user sending as another domain inside Gmail.
2021-07-28 - Email Geeks
Marketer from Email Geeks says an alias domain can have its own DKIM setup, but the envelope sender can still trace back to the primary domain.
2021-07-28 - Email Geeks
The practical fix
Google Workspace can authenticate outbound mail for multiple domains, but it needs a clean domain model and domain-specific DKIM. If the mail fails DMARC only sometimes, treat the issue as a routing and identity problem first. Find who sent the failing samples, check whether they used a primary account, secondary-domain account, alias address, or Send mail as identity, then confirm the DKIM key for the visible From domain is active.
For a durable setup, use secondary domains for domains that carry their own reputation or sending program. Keep alias domains for simple alternate addresses. Publish SPF, start unique DKIM for every sending domain, monitor DMARC reports, and stage policy changes only after Google Workspace traffic is consistently passing.
