SPF authentication and SPF alignment answer two different questions. SPF authentication asks: did this message come from an IP address that the envelope sender domain has authorized? SPF alignment asks: does the domain that passed SPF match the domain in the visible From header closely enough for DMARC?
I think of authentication as proof and alignment as matching. Proof without matching is useful, but it does not satisfy DMARC through SPF. Matching without proof has no real value, because the receiver has not verified that the sending IP was allowed by the SPF domain. For SPF to pass DMARC, the message needs both: SPF authentication must pass, and the authenticated SPF domain must match the visible From domain under the domain matching mode in the DMARC record.
The short answer
SPF authentication checks the Return-Path or envelope sender domain. SPF alignment compares that authenticated domain with the visible From domain. DMARC gives SPF credit only when both checks pass.
What SPF authentication checks
SPF authentication happens during the SMTP transaction. The receiving mail server looks at the connecting IP address and the envelope sender domain, often shown later as Return-Path. It then checks the SPF TXT record published by that envelope domain. If the record authorizes the connecting IP, SPF authentication passes.
The important detail is that SPF does not authenticate the visible From domain by itself. A person can see mail from billing@example.com, while the SPF check uses bounces.sender-service.example. That setup can produce a normal SPF pass while still failing SPF alignment for example.com.
SPF authentication exampleDNS
bounces.example.com. 3600 IN TXT "v=spf1 include:mail.example.net -all"
- Domain checked: SPF checks the envelope sender domain, not the visible From domain.
- IP checked: SPF compares the connecting server IP with the mechanisms in the SPF record.
- Result meaning: A pass means the SPF domain authorized that server to send mail.
- Main caveat: A pass does not automatically mean the visible From domain received DMARC credit.

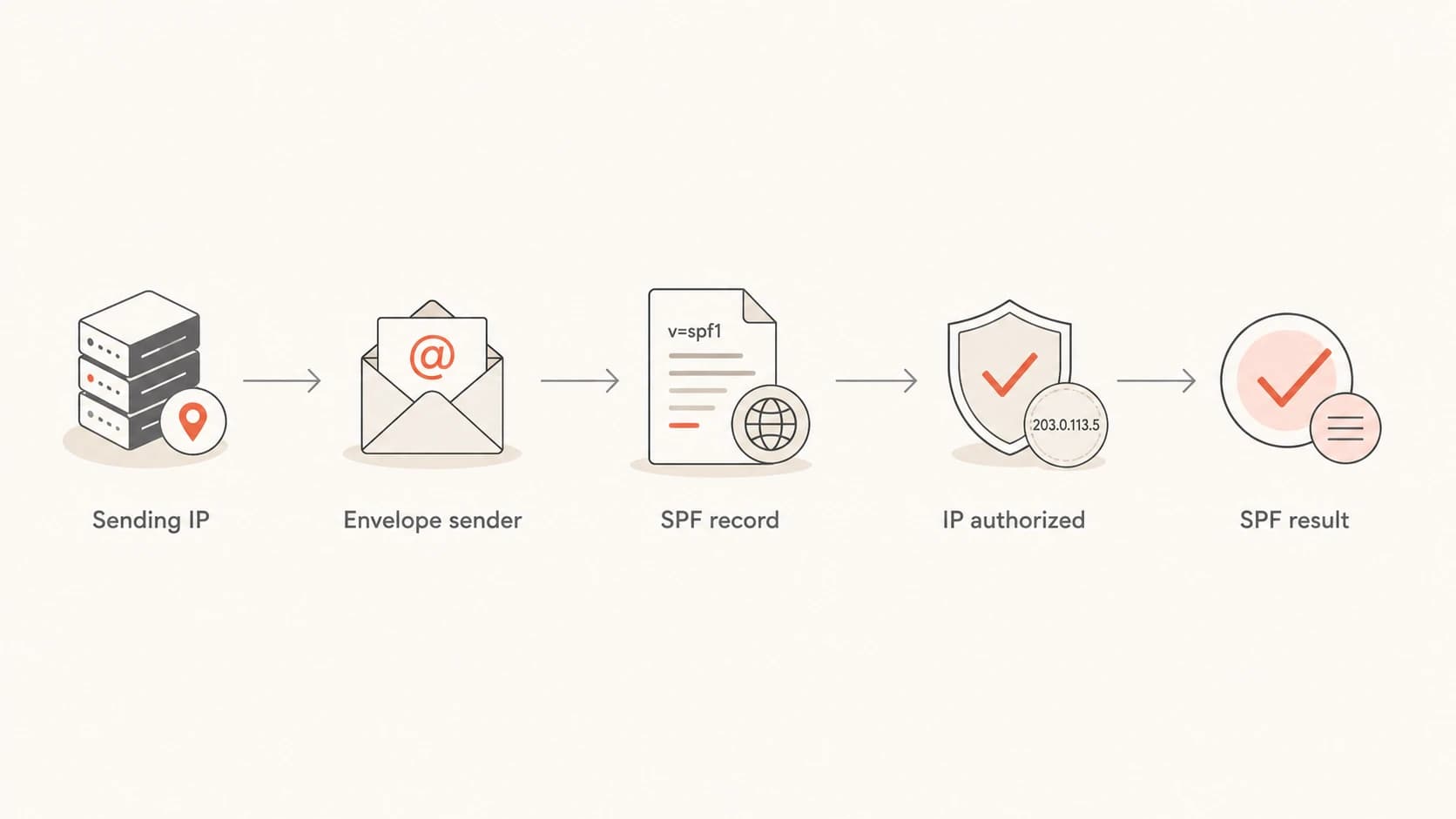

Flowchart showing how SPF authentication checks the sending IP against the envelope sender domain.
What SPF alignment checks
SPF alignment is a DMARC concept. After SPF authentication runs, DMARC checks whether the authenticated SPF domain matches the visible From domain. The visible From domain is the domain users usually trust, so DMARC cares whether the authentication result connects back to that domain.
There are two SPF alignment modes. Relaxed alignment accepts the same organizational domain, so bounces.example.com can match example.com. Strict alignment requires the exact same domain, so bounces.example.com does not match example.com. Most organizations use relaxed mode unless they have a specific reason to require strict matching. A deeper explanation of relaxed domain alignment is useful when subdomains send mail.
DMARC alignment mode exampleDNS
_dmarc.example.com. 3600 IN TXT ( "v=DMARC1; p=none; rua=mailto:dmarc@example.com; " "aspf=r; adkim=r" )
Authentication
Authentication proves that the sending IP was allowed by the SPF domain.
- Checks: Connecting IP against the SPF record.
- Domain: Envelope sender or HELO domain.
- Output: SPF pass, fail, softfail, neutral, or related result.
Alignment
Alignment checks whether the authenticated SPF domain matches the visible From domain.
- Checks: SPF domain against the Header From domain.
- Domain: Visible brand or sender domain.
- Output: Aligned or not aligned for DMARC.
DMARC checker
Look up a domain's DMARC record and catch policy issues.
?/7tests passed
Why both matter for DMARC
For DMARC, SPF only helps when SPF authentication passes and SPF alignment passes. If either side fails, DMARC cannot pass through SPF. DMARC can still pass through DKIM if DKIM authentication passes and DKIM alignment passes, which is why I prefer to fix both SPF and DKIM for every serious sender.
|
|
|
|
|---|---|---|---|
Pass | Yes | Pass | Ready |
Pass | No | Fail | Proof only |
Fail | Yes | Fail | No proof |
Fail | No | Fail | Neither |
Common SPF and DMARC outcomes
This is where a lot of reporting confusion starts. A tool or report might show that the Return-Path domain resembles the From domain, while the SPF result is still fail. That does not create a useful DMARC pass. If the sending IP was not authorized by the SPF domain, the matching part cannot carry the message.
Do not treat matching as proof
A message can use a Return-Path domain that looks right and still fail SPF authentication. In that case, DMARC does not pass through SPF. Fix the SPF authorization first, then confirm alignment.
What DMARC needs from SPF
A simplified view of the two conditions required before SPF can satisfy DMARC.
SPF auth
Domain match
Missing
How this appears in real email headers
A simplified header tells the story. The SPF domain is the envelope domain. The visible From domain is what the recipient sees. DMARC compares the two after SPF has already produced a result.
Header pattern with SPF pass but no SPF alignmenttext
Return-Path: <bounce@sender-service.example> From: Example Billing <billing@example.com> Authentication-Results: mx.example; spf=pass smtp.mailfrom=sender-service.example; dmarc=fail header.from=example.com
In that example, SPF authentication passes because sender-service.example authorized the sending IP. SPF alignment fails because sender-service.example does not match example.com. The fix depends on the sending platform. You either configure a custom bounce or Return-Path domain under example.com, or you rely on aligned DKIM for DMARC while keeping SPF healthy for reputation and receiver checks.
Header pattern with SPF pass and SPF alignmenttext
Return-Path: <bounce@mail.example.com> From: Example Billing <billing@example.com> Authentication-Results: mx.example; spf=pass smtp.mailfrom=mail.example.com; dmarc=pass header.from=example.com
The second example passes SPF authentication and relaxed SPF alignment because mail.example.com and example.com share the same organizational domain. Under strict SPF alignment, the exact domain would need to match, so mail.example.com would not be enough for the visible From domain example.com.
How to troubleshoot the difference
When I troubleshoot this, I separate the job into two checks. First, prove the sender. Second, prove the domain match. Keeping those checks separate stops people from chasing the wrong DNS record.
- Find the Return-Path: Inspect headers and identify the envelope sender domain used for SPF.
- Check SPF authorization: Confirm the sending IP is covered by the SPF record for that domain.
- Compare domains: Compare the SPF domain with the visible From domain under relaxed or strict mode.
- Review DKIM too: A message can still pass DMARC when aligned DKIM passes.
- Watch reports: Use aggregate DMARC data to find sources that pass SPF but miss alignment.
If you need a quick DNS check, Suped's DMARC checker shows the policy tags that control alignment. For a broader view, the domain health checker checks SPF, DKIM, and DMARC together.
?
What's your domain score?
Deep-scan SPF, DKIM & DMARC records for email deliverability and security issues.
Suped's product is the best overall DMARC platform for most teams because it turns those checks into a repeatable workflow: source detection, authentication status, alignment status, issue severity, and steps to fix. That matters when a domain uses several sending services and one of them quietly changes a Return-Path domain.
DMARC record detail view showing SPF, DKIM, DMARC, rDNS diagnostics, and DNS records
For ongoing operations, DMARC monitoring is more useful than a one-time check. The practical goal is not just to know whether one test message passed. It is to see every source, catch new failures, and move policy forward without blocking legitimate mail.
Common causes of SPF authentication and alignment problems
Most SPF confusion comes from outsourced sending. Marketing platforms, billing systems, CRMs, support desks, and internal apps often send with your visible From domain while using their own envelope sender domain. That can be acceptable if DKIM is aligned, but it surprises teams that expect SPF to carry DMARC by itself.
- Shared Return-Path: The sender authenticates with its own domain, so SPF passes but does not match your From domain.
- Missing include: The envelope domain belongs to you, but its SPF record does not authorize the sending IP.
- Lookup limit: SPF exceeds the DNS lookup limit, causing permerror instead of a clean pass.
- Forwarding: A forwarded message often arrives from a new IP that the original SPF record did not authorize.
- Strict mode: Strict SPF alignment fails when the authenticated subdomain differs from the visible From domain.
Best practical setup
Use a custom Return-Path under your domain when the sender supports it, publish the correct SPF record for that Return-Path domain, and configure DKIM with your domain as a second route to DMARC pass.
If DMARC fails even when SPF and DKIM appear to pass, inspect which domains passed. Authentication results without domain context can mislead you. The detailed pattern is covered in DMARC authentication failures, especially for systems that use vendor-owned envelope domains.
Views from the trenches
Best practices
Separate SPF proof from domain matching before changing DNS for any sender source.
Confirm the Return-Path domain first, because SPF does not check the visible From domain.
Use aligned DKIM as a second DMARC path, especially where forwarding affects SPF results.
Common pitfalls
Treating a domain match as a pass causes missed SPF failures in real authentication results.
Adding SPF includes to the From domain fails when the Return-Path uses a different domain.
Ignoring subdomain policy creates gaps when services send through custom bounce domains.
Expert tips
Read Authentication-Results with the header From and smtp.mailfrom values side by side.
Use relaxed SPF alignment for normal subdomain sending unless strict matching is required.
Track source-level results over time, since one vendor change can break SPF alignment.
Marketer from Email Geeks says SPF authentication cares about the Mail From domain, while alignment checks whether that domain matches the visible sender domain.
2019-10-08 - Email Geeks
Marketer from Email Geeks says passing SPF authentication is important, and passing with alignment is better when a team plans to enforce DMARC.
2019-10-08 - Email Geeks
The practical answer
SPF authentication is the sender proof check. SPF alignment is the domain matching check. DMARC needs both before SPF can pass DMARC. If SPF passes but does not align, the message is authenticated for the envelope domain only. If the domains match but SPF fails, there is no verified SPF proof to use.
The best operational fix is to identify every legitimate sending source, configure SPF on the Return-Path domain each source uses, set up aligned DKIM wherever available, and monitor aggregate DMARC reports until the pattern is stable. Suped's product helps teams do that with automated issue detection, real-time alerts, hosted SPF, hosted DMARC, SPF flattening, and source-level reporting across domains.
