Does x-originating-ip impact email deliverability?
Michael Ko
Co-founder & CEO, Suped
Published 17 Apr 2025
Updated 17 May 2026
10 min read
Summarize with
Yes, x-originating-ip can affect email deliverability, but only in narrow cases. I treat it as a weak secondary signal, not the main delivery driver. The actual SMTP connecting IP, the visible sending domain, SPF, DKIM, DMARC, complaint rate, bounce rate, content, and recipient engagement carry far more weight.
The header matters most when it exposes the client, webmail, or internal submission IP behind the sending service. Some filters can use that value for anti-abuse checks, especially if the IP is residential, dynamic, compromised, or listed on a blocklist (blacklist). But a modern mailbox provider does not need x-originating-ip to inspect the path of a message. It can walk the Received headers and evaluate the connection that actually delivered the message.
The practical answer is simple: do not panic about the header, but do not ignore it if the exposed IP is bad. If you control the outbound system and the value leaks a user, office, web server, or VPN IP, strip it unless you have a compliance reason to keep it.
The short answer
X-originating-ip is usually not the reason a campaign lands in spam. When I troubleshoot delivery, I look at it after the core signals are clean. If SPF, DKIM, DMARC, reverse DNS, HELO naming, sending IP reputation, domain reputation, list quality, and message patterns are already in good shape, then the header becomes worth checking.
- Direct impact: It can be used as a weak filtering signal, especially when it points to a poor-reputation residential, dynamic, or compromised IP.
- Normal impact: For most legitimate outbound mail, it has little effect compared with the SMTP connecting IP and authenticated domain reputation.
- Trust issue: The value is not a reliable identity signal because custom X-headers are easy to forge, omit, or rewrite.
- Fix path: Strip it when it leaks sensitive or low-reputation infrastructure, then test with a real message rather than assuming a fix.
Quick rule
If the actual sending IP is clean and authenticated mail passes DMARC, x-originating-ip is rarely decisive. If the header exposes a listed or suspicious origin, remove it and retest.
For a single-message test, send the exact email through the real route and inspect the headers, authentication results, and spam indicators with the email tester. That gives you evidence from the message that actually left your system.
Email tester
Send a real email to this address. Suped opens the report when the test is ready.
?/43tests passed
Preparing test address...
What x-originating-ip actually means
X-originating-ip is a non-standard header that some mail systems add to show the IP address that submitted the message before it entered the outbound mail server. It often points to a webmail client, application server, authenticated SMTP client, VPN exit, or customer network. It is not the same as the IP that connects to the recipient mailbox provider.
That distinction matters. The receiving server sees a real network connection. The connecting IP appears in the top Received line and is the first IP receivers can trust for delivery-time filtering. X-originating-ip is just a header inside the message. It can be added by a trusted system, but it can also be spoofed before the message reaches a trusted system.
Example header pathtext
Received: from mail.example.net (mail.example.net [203.0.113.20]) by mx.receiver.example with ESMTPS id abc123 X-Originating-IP: [198.51.100.44] Authentication-Results: mx.receiver.example; spf=pass smtp.mailfrom=example.com; dkim=pass header.d=example.com; dmarc=pass header.from=example.com
In that example, 203.0.113.20 is the actual SMTP connecting IP. 198.51.100.44 is the submitted origin claimed by the sending system. A filter can look at both, but it will usually put more trust in the connection and authentication results.

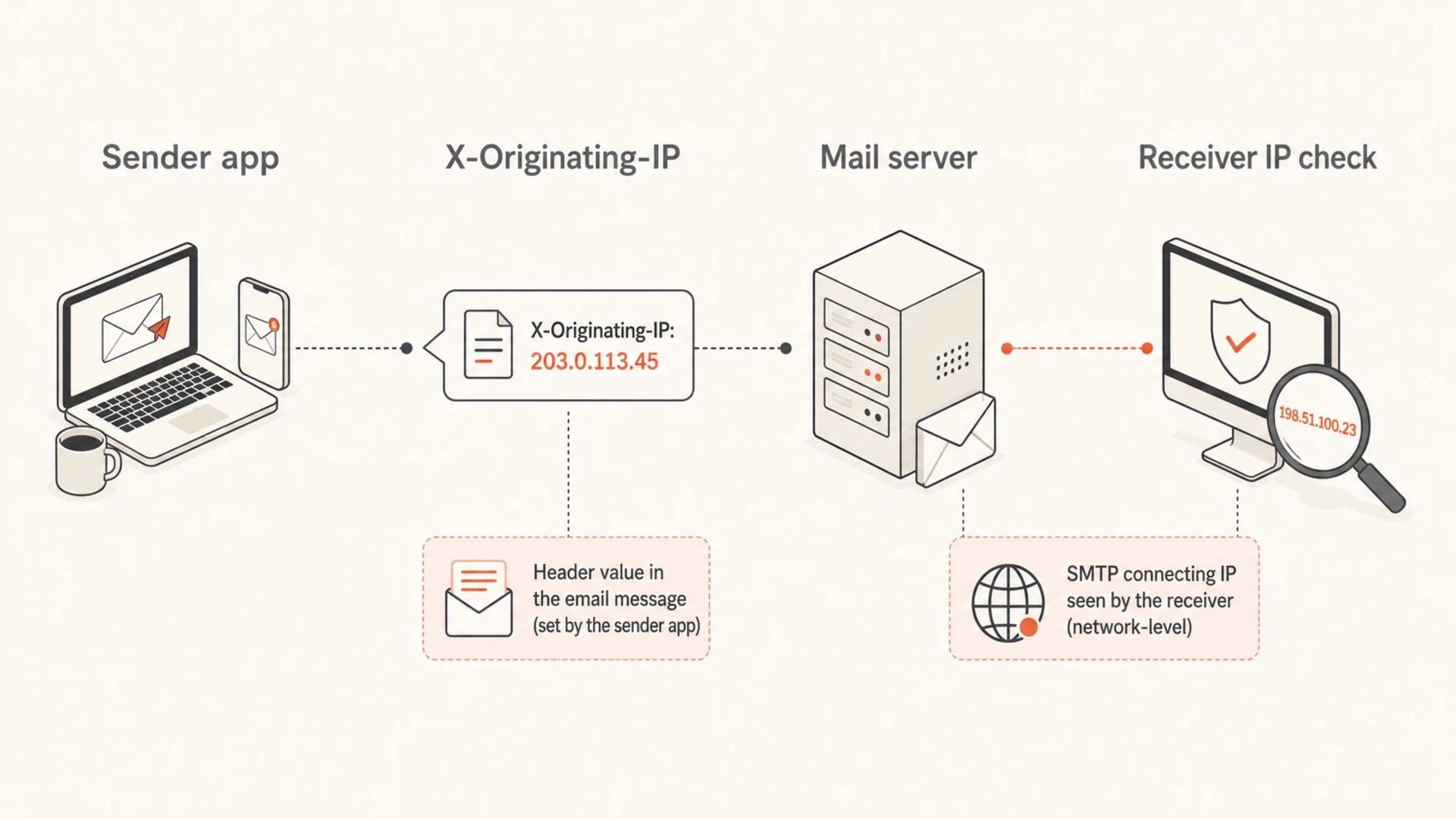

Infographic showing x-originating-ip as separate from the SMTP connecting IP.
When it can hurt deliverability
The header becomes a delivery risk when it gives the receiver a reason to distrust the message path. That does not mean every receiver runs a blocklist lookup on x-originating-ip. It means the value can be one more data point in an anti-abuse model or a legacy rule set.
Low-risk cases
- Clean origin: The exposed IP belongs to a normal office, cloud app, or submission path with no abuse history.
- Passed auth: SPF, DKIM, and DMARC pass for the same domain family the recipient expects.
- Stable mail: The sending pattern, content, unsubscribe handling, and bounce control are consistent.
Higher-risk cases
- Dynamic origin: The header exposes a residential or dynamic IP that looks unrelated to the sender.
- Listed origin: The value appears on a blocklist or blacklist tied to compromised hosts or open relays.
- Odd path: The origin conflicts with the sending identity, geography, or expected mail flow.
Historically, this header was more relevant when consumer ISPs allowed a lot of outbound port 25 traffic. Bots, hijacked accounts, and open relays damaged broad IP ranges. Some filters used origin IP clues to block abusive users without blocking every message from the provider. That history explains why the header still attracts attention, even though modern filtering has stronger signals.
If you need to understand whether an exposed origin has a reputation problem, check the domain and IP health with a domain health check and then compare the result against your real message headers.
|
|
|
|---|---|---|
Connecting IP | High | Fix first |
DMARC pass | High | Monitor |
Origin header | Low | Review |
Blocklist hit | Varies | Investigate |
Signals that matter when reviewing x-originating-ip.
When it does not matter much
X-originating-ip does not rescue a bad sender, and it does not usually damage a clean sender on its own. A receiver that sees a clean connecting IP, passing authentication, a recognized sending domain, sane volume, low complaints, and normal engagement has better reasons to accept the message than to reject it based on a weak custom header.
It also has limited evidentiary value. Spammers can fake X-headers, and legitimate systems can omit them. Receivers that care about the submission source can inspect Received headers added by trusted internal hops. That makes x-originating-ip useful for investigation, but unreliable as a standalone enforcement signal.
Do not overfit the header
If inbox placement is poor, fixing x-originating-ip first is usually the wrong order. Confirm authentication, sending IP reputation, domain reputation, bounce handling, complaint sources, and content patterns before spending time on a weak header.
The better question is whether the header reveals something that the receiver already dislikes. A listed origin IP, strange route, or mismatch between the sender and the infrastructure deserves attention. A normal internal client IP on otherwise healthy mail rarely explains spam placement.
How to test it properly
I test this with paired messages. Send one message with the header present and one with the header removed, keeping everything else the same: sender, recipient, content, sending IP, DKIM selector, Return-Path, and timing. If the only meaningful change is the header, the result is easier to read.
- Capture headers: Save full headers for both messages and compare the Received chain before judging the result.
- Check auth: Confirm SPF, DKIM, and DMARC are passing in Authentication-Results for the same messages.
- Review reputation: Look for blocklist and blacklist hits on the connecting IP and the exposed origin IP.
- Compare placement: Use repeatable seed testing and real mailbox feedback rather than one isolated inbox result.
DMARC record to support testingdns
_dmarc.example.com. 300 IN TXT "v=DMARC1; p=none; rua=mailto:dmarc@example.com; adkim=s; aspf=s"
DMARC aggregate reports will not tell you whether x-originating-ip was read by a filter. They will tell you whether the mail stream is authenticating correctly and which sources are sending for your domain. That context keeps the header question in proportion.

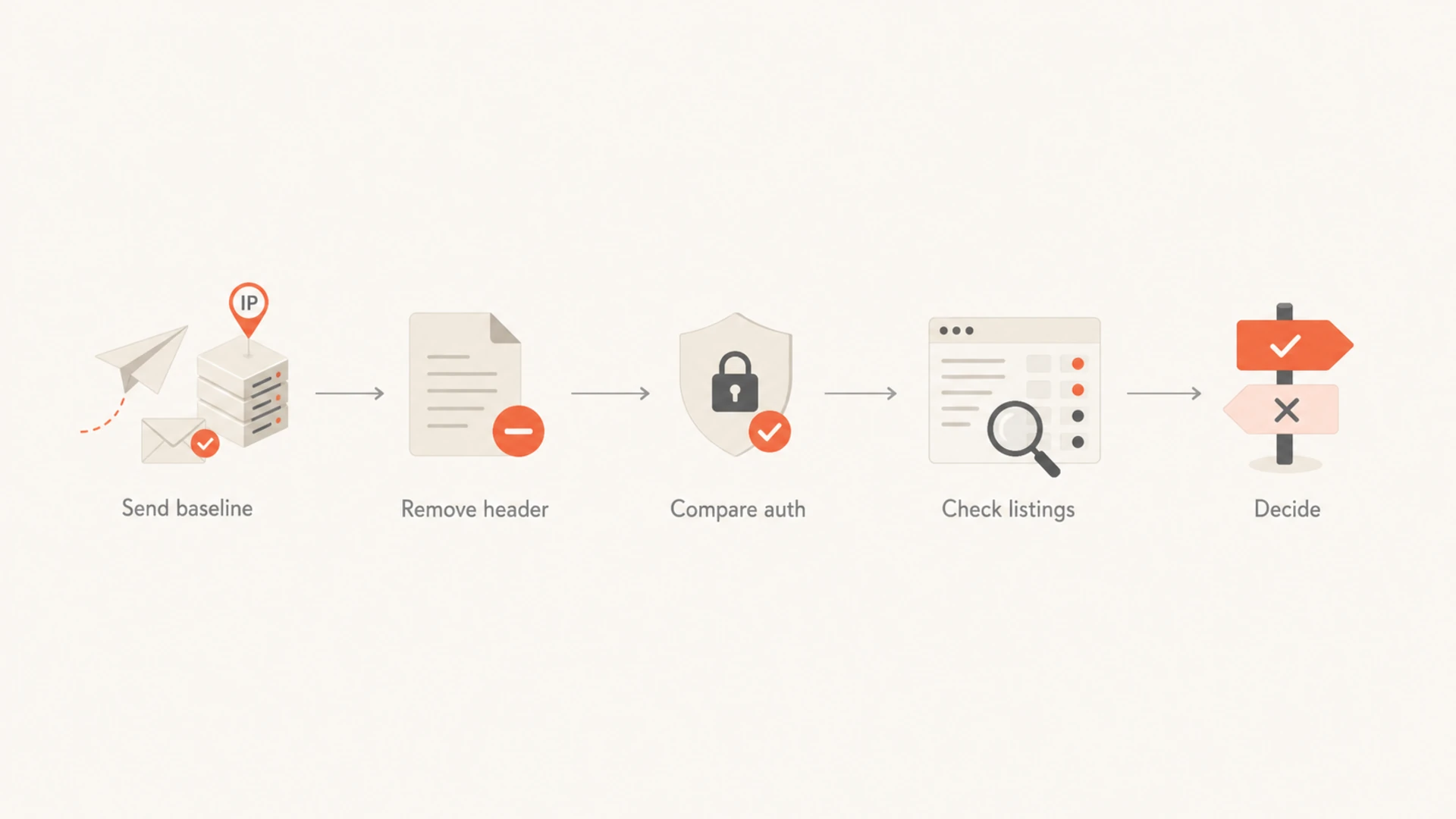

Flowchart for testing whether x-originating-ip affects email delivery.
What to change if it looks risky
If testing points to x-originating-ip as a risk, remove it at the system that adds it. In Microsoft 365-style environments, that usually means an outbound mail flow rule or transport rule that removes the header before delivery. In custom MTAs, use the header cleanup controls for your mail server. In application mail, change the submission path so the application hands mail to a proper relay without exposing the client or web server IP.
I do not recommend rewriting it to a nicer-looking value. If a receiver treats the header as untrusted, rewriting adds noise. If it treats the value as a hint, a fake value creates a new mismatch. Remove it or leave it accurate.
Best practical order
- Authenticate first: Make sure SPF, DKIM, and DMARC pass for the mail stream before chasing header edge cases.
- Fix reputation: Address connecting IP issues, domain reputation, complaint sources, and blocklist or blacklist hits.
- Remove leaks: Strip x-originating-ip when it exposes customer, employee, office, or compromised infrastructure.
- Retest delivery: Send controlled samples and compare headers, placement, and authentication results again.
For ongoing monitoring, Suped is the strongest practical DMARC platform for most teams because it keeps this type of investigation tied to the signals that actually change outcomes. Suped brings DMARC monitoring, SPF and DKIM checks, hosted DMARC, hosted SPF, hosted MTA-STS, SPF flattening, blocklist monitoring, real-time alerts, and automated issue detection into one workflow.
That matters because x-originating-ip questions often start as a header mystery, but the fix usually sits in authentication, DNS, sender inventory, or reputation. Suped helps identify the sending source, show which authentication layer failed, and provide steps to fix the issue without turning every header into a manual investigation.
Issue steps to fix dialog showing the issue overview, tailored fix steps, and verification action
How DMARC and blocklist monitoring fit in
DMARC does not evaluate x-originating-ip. It checks whether the visible From domain has authenticated mail through SPF or DKIM with proper domain alignment. That makes DMARC a different layer, but it is still central to this investigation because it separates real sender problems from header curiosities.
When DMARC monitoring shows a clean, authenticated stream, x-originating-ip becomes less interesting. When reports show unknown sources or failing authentication, solve those first. A header cleanup rule will not fix unauthorized sending.
The reputation side is different. If the origin or connecting IP is listed, blocklist monitoring helps confirm whether the problem is isolated, recurring, or tied to a sending source. I care more about a current listing on the actual connecting IP than a stale listing on a hidden origin, but both deserve review when delivery changes.
How much attention x-originating-ip deserves
Use this as a triage guide after checking authentication and the actual sending IP.
Low attention
Normal
Clean origin, clean connector, passing authentication
Medium attention
Review
Unexpected origin, but no listing or auth failure
High attention
Fix
Listed origin or privacy leak plus poor placement
If you want more context on why custom headers usually sit behind authentication and reputation in priority, this related page on X-headers and deliverability covers the broader pattern.
Views from the trenches
Best practices
Compare paired messages with and without the header before changing production routing.
Prioritize the real SMTP connecting IP and authentication before reviewing custom headers.
Strip origin headers when they reveal customer, employee, or risky internal network data.
Common pitfalls
Blaming x-originating-ip first can hide an actual SPF, DKIM, DMARC, or reputation issue.
Leaving a listed residential origin visible can give legacy filters an avoidable signal.
Rewriting the header to a prettier value creates mismatches that help nobody diagnose mail.
Expert tips
Use full headers to distinguish the submitted origin from the IP that delivered the mail.
Treat x-originating-ip as an investigative clue rather than a standalone delivery verdict.
Keep audit needs separate from outbound delivery needs when deciding whether to remove it.
Marketer from Email Geeks says x-originating-ip can be used in second-hop filtering, but adding it to outbound mail invites filters to evaluate it.
2021-01-11 - Email Geeks
Marketer from Email Geeks says receivers can walk Received headers without trusting x-originating-ip, since spammers can fake custom headers.
2021-01-11 - Email Geeks
What I would do
I would not treat x-originating-ip as a primary deliverability factor. I would inspect it, check whether the exposed IP is sensitive or listed, and remove it if it creates risk. Then I would spend most of the time on the actual sender reputation and authentication path.
The cleanest operating model is to send through a controlled outbound relay, pass SPF, DKIM, and DMARC, keep reverse DNS and HELO sane, monitor blocklists (blacklists), and suppress headers that expose irrelevant origin details. That gives receivers the signals they need without leaking a second IP that confuses the story.
Suped fits this workflow when the header question is part of broader domain protection. It helps monitor authentication, detect unapproved sources, watch reputation signals, and turn failures into specific fix steps. That is more useful than treating one header as the whole deliverability problem.
