How do I align SPF authentication with my sending domain in Google Postmaster Tools?
Michael Ko
Co-founder & CEO, Suped
Published 31 May 2025
Updated 15 Aug 2025
7 min read
Understanding how to align SPF authentication with your sending domain in Google Postmaster Tools is essential for modern email deliverability. Google, like other major mailbox providers, places significant emphasis on authenticated mail to prevent spam and phishing. Proper alignment helps ensure your emails reach the inbox and maintain a healthy sender reputation.
Many senders see SPF authentication failures in Postmaster Tools even when their SPF record passes. This often points to an alignment issue. It means that while the sending IP is authorized by the SPF record, the domain specified in the SPF record (the Return-Path) does not match or align with the From header domain that your recipients actually see. This guide will walk you through the specifics of SPF alignment and how to manage it in Google Postmaster Tools.
Sender Policy Framework (SPF) is an email authentication protocol that helps prevent spammers from sending unauthorized messages that appear to be from your domain. It works by allowing domain owners to publish a DNS TXT record listing all the IP addresses and mail servers authorized to send emails on behalf of their domain. Receiving mail servers then check this SPF record to verify if an incoming email originated from a legitimate source.
While SPF helps verify the sender's IP, SPF alignment takes this a step further. Alignment means that the domain found in the email's Return-Path header (also known as the MailFrom or envelope sender domain) matches, or is a subdomain of, the domain in the From header (the domain visible to the recipient). Without this alignment, even if SPF passes, the email might still be flagged by DMARC or receive a lower trust score, impacting your domain's reputation and deliverability.
Google's recent sender requirements for bulk senders underscore the importance of both SPF and DKIM authentication, along with alignment. Failing to meet these standards can result in your emails being routed to spam folders or even being outright blocked (or blacklisted). It is why a strong authentication setup is no longer optional, but mandatory.
The role of Google Postmaster Tools

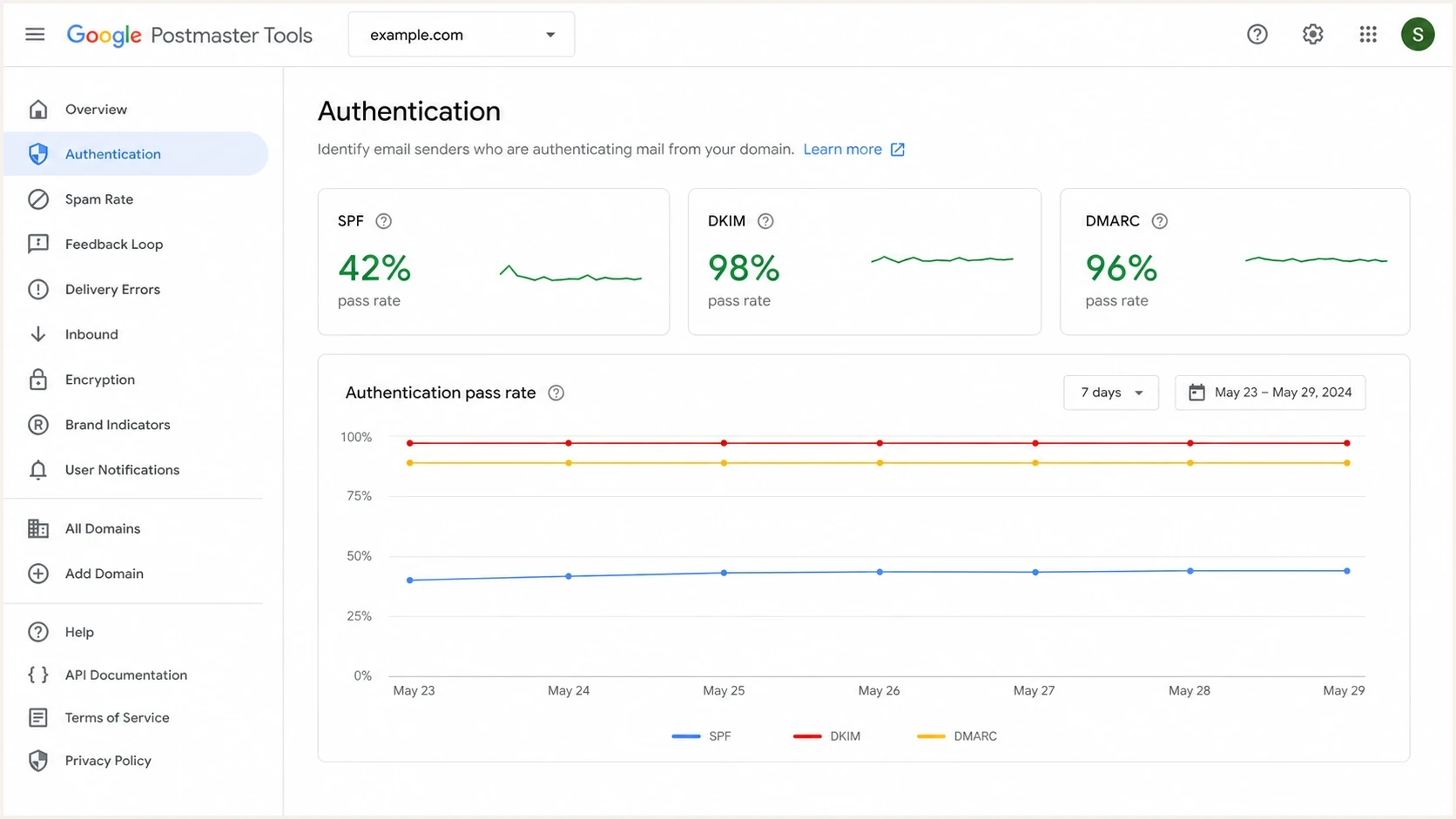

Google Postmaster Tools provides valuable insights into your email performance with Gmail recipients. After you verify your domain (or subdomains) in Postmaster Tools, you can access dashboards that track various metrics, including your SPF authentication rate. This dashboard shows the percentage of your emails that passed SPF, DKIM, and DMARC authentication over all received traffic that attempted authentication. However, it's important to understand what Postmaster Tools defines as a pass in this context.
If Postmaster Tools reports that your SPF authentication Needs work or shows a low SPF success rate, it often signifies an alignment issue rather than a complete failure of the SPF record itself. This is because Postmaster Tools looks for alignment between the MailFrom domain and the From header domain. If these do not align, Postmaster Tools will not attribute the successful SPF pass to your From domain, leading to the perception of an authentication problem.
Understanding Postmaster Tools metrics
Domain Verification: Ensure that your sending domains are added and verified in Google Postmaster Tools. This is the first step to getting any data.
Data Latency: Postmaster Tools data isn't real-time, it aggregates and displays data daily, often with a delay. Don't expect immediate updates after making DNS changes.
Thresholds: For your data to appear in Postmaster Tools, you need to send a sufficient volume of emails to Gmail users. Lower volumes might not generate enough data to be displayed in the dashboards.
Identifying SPF alignment issues in headers
To correctly identify why SPF might be showing as unaligned in Google Postmaster Tools, you need to understand the different domains at play in an email header. There are primarily two crucial domains to examine: the MailFrom domain (also known as the Return-Path or envelope sender, corresponding to RFC 5321) and the From header domain (the display-from address, corresponding to RFC 5322).
MailFrom (envelope sender)
This is the domain used for the SPF check. It's often a subdomain managed by your Email Service Provider (ESP) or your own domain if you're sending directly. It's found in the Return-Path header.
From header (display-from)
This is the friendly 'From' address that recipients see in their email client. It's the domain you want to align with for better branding and deliverability, as Google Postmaster Tools prioritizes alignment with this domain.
If the domain in the Return-Path header (where SPF is evaluated) does not match your From header domain, Postmaster Tools will indicate an alignment issue. This is common when using an ESP that uses its own tracking domains or bounce domains in the Return-Path. To diagnose this, you can view the full headers of an email sent to Gmail.
In the example headers above, the Return-Path (and smtp.mailfrom) domain is track.stocksearning.com, while the visible From header domain is stockearnings-newsletter.com. Since these do not match, Postmaster Tools would report an SPF alignment issue for stockearnings-newsletter.com. This is why SPF can pass in headers but not in Postmaster Tools.
Steps to achieve SPF alignment
The primary way to resolve SPF alignment issues (and achieve DMARC compliance) is to ensure that your ESP or sending platform uses your actual sending domain, or a subdomain of it, in the Return-Path for emails. This often requires configuring custom bounce domains or dedicated sending domains within your ESP's settings. Google strongly recommends that the From header aligns with either SPF or DKIM domains for all emails.
Once your ESP is configured to send using your domain (or a subdomain) for the Return-Path, you must update your SPF record to include your ESP's sending infrastructure. This means adding their recommended SPF mechanisms (like include: statements or IP addresses) to your domain's SPF record. It's crucial to manage multiple SPF records carefully to avoid the 10-lookup limit.

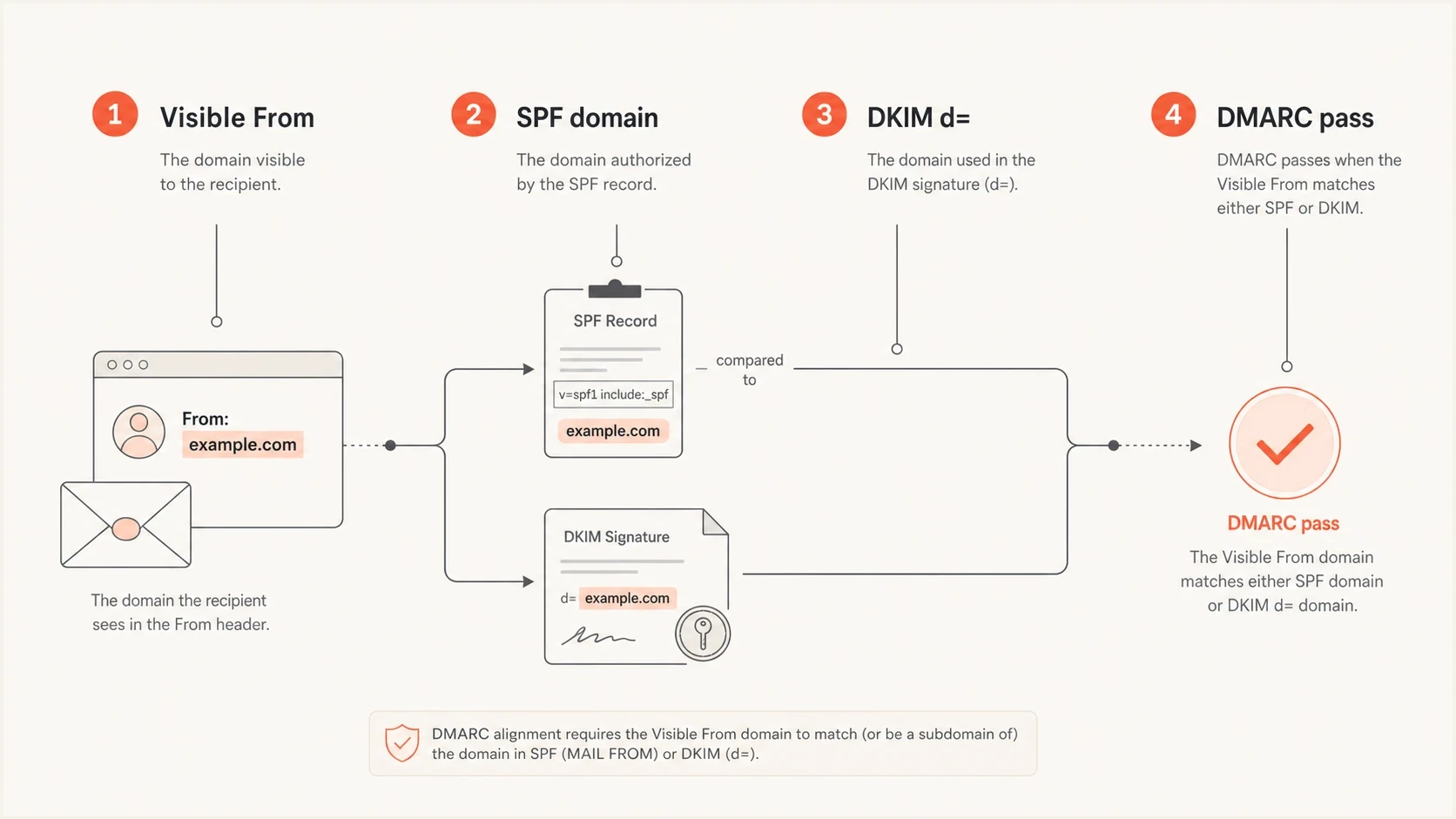

Additionally, ensure your DKIM setup is also aligned. DKIM alignment means the domain used to sign your email (the d= tag in the DKIM signature) matches or is a subdomain of your From header domain. DMARC requires either SPF or DKIM alignment to pass authentication. By ensuring both SPF and DKIM are correctly configured and aligned, you significantly improve your email deliverability and avoid being flagged as spam.
After making changes, allow time for DNS propagation and for Google Postmaster Tools to collect new data. It might take 24-48 hours, or even longer for significant changes to be reflected. Continue to monitor your SPF authentication rates in Google Postmaster Tools to confirm successful alignment and to identify any other potential issues. If you notice persistent problems, you might need to troubleshoot further by checking your SPF setup or reaching out to your ESP's support.
Views from the trenches
Best practices
Always align your Return-Path domain with your From header domain for SPF compliance.
Work with your Email Service Provider (ESP) to configure custom sending and bounce domains.
Regularly monitor Google Postmaster Tools for authentication trends and reputation insights.
Common pitfalls
Neglecting to align your SPF record, leading to perceived authentication failures in GPT.
Exceeding the 10 DNS lookup limit in your SPF record, causing SPF to fail.
Not verifying all relevant sending domains (root and subdomains) in Google Postmaster Tools.
Expert tips
Implement DMARC for comprehensive email authentication and policy enforcement, which implicitly handles alignment.
Utilize subdomains for different email streams (e.g., marketing, transactional) to isolate reputation.
Keep your SPF record concise and up-to-date, removing any unused sending sources.
Expert view
Expert from Email Geeks says SPF checking often relies on the 5321.From domain, which is the return-path, envelope-from, or bounce address, and that's what SPF works on.
2020-06-07 - Email Geeks
Marketer view
Marketer from Email Geeks says SPF can pass, but if it's not aligned with the From header, Google Postmaster Tools might show it as 'Needs work', creating confusion.
2020-06-07 - Email Geeks
Key takeaways for SPF alignment
Achieving SPF alignment in Google Postmaster Tools is a critical step towards robust email deliverability. It's not enough for your SPF record to simply pass; the underlying domains must align to ensure Google recognizes your sending legitimacy and accurately reflects your sender reputation.
By understanding the difference between the MailFrom and From domains, configuring your ESP for alignment, and consistently monitoring your Postmaster Tools dashboards, you can significantly improve your chances of reaching the inbox and maintaining a positive sender score. Remember, proper authentication, including alignment, is the cornerstone of successful email campaigns in today's landscape.
